£3,384.15
excl. VAT
£4,060.98 incl. VAT
£4,060.98
incl. VAT
£3,384.15 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

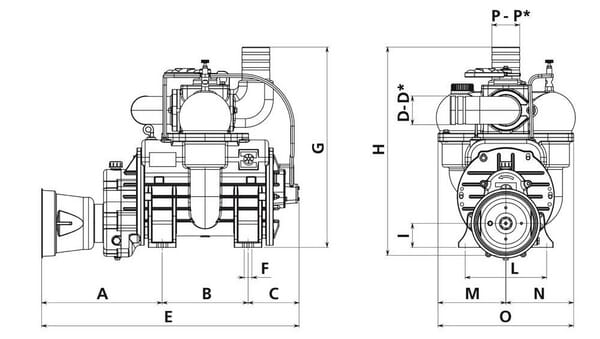

| AMounting holes to shaft end distance | 346 mm |
|---|---|
| Application range | These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks |
| Ballast air injection system | Yes |
| Benefits | Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed |
| B,LMounting holes distance | 247 mm, 246 mm |
| CMounting holes to end distance | 147 mm |
| Consists of | Including PTO shaft cover, Without pressure relief valve (item 0200013) and vacuum valve (item 0155513), The pumps are delivered without lubrication oil (item BP5070) |
| Crash protection system | Yes |
| Depression valve connection diameter | 1-1/2 Inch |
| Details | The MEC II-series pumps have an automatic protection system. So, for example, if a vane breaks, the rotor and rotor housing can be protected by the rotor—including the flange mountings—being pushed downwards, Pumps with a "ballast system", identified by B at the end of the item number (e.g. MEC9000MB) have a longer operating time in vacuum operation, The operating time at -0.95 bar lasts from 8 minutes (standard) up to a maximum of 15 minutes. Continuous operation is permissible at -0.6 bar., MEC II-series pumps are supplied with long-life (heat-resistant) vanes as standard, MEC II-series pumps feature a temperature meter to enable the temperature to be read during operation, A maintenance hatch can be used to determine the wear condition of the vanes, indicating when the vanes need to be replaced, Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors, A test report relating to the serial number is drawn up for each pump |
| D,PDiameter of hose connection | 80 mm |
| Drive type | PTO 540 rpm |
| ETotal length | 740 mm |
| FMounting holes diameter | 22 mm |
| HHeight | 605 mm |
| IShaft centre to bottom distance | 69 mm |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Max. shaft rotation | 540 r/min |
| Max vacuum | 0.95 BAR |
| MShaft centre to left side end distance | 195 mm |
| Nominal volume flow rate | 11137 l/min |
| NShaft centre to right side end distance | 195 mm |
| OTotal width | 390 mm |
| Power requirement for max. pressure | 40 kW |
| Power requirement for max. vacuum | 21 kW |
| Properties | These pumps can generate both positive pressure and vacuum |
| Reservoir capacity | 3 l |
| Rotation direction | Counter-clockwise (CCW) |
| Safety valve connection diameter | 2 Inch |
| Shaft diameter | 1-3/8 Inch |
| Technical info | Composition of the item numbers: MEC = series, 9000 = type, M = indirect drive 540 rpm, A = automatic lubrication, B = ballast system, On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles, On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool, In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation, Pumps with indirect drive (M) must be driven anti-clockwise, The direction of rotation is determined when the axle to be driven is aligned with the observer, If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise, Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070) |
| Unit | Each |
| Vane type | Long life |
| Weight | 160 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 110000 g |
| Dimensions | 750 × 400 × 700 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000321334

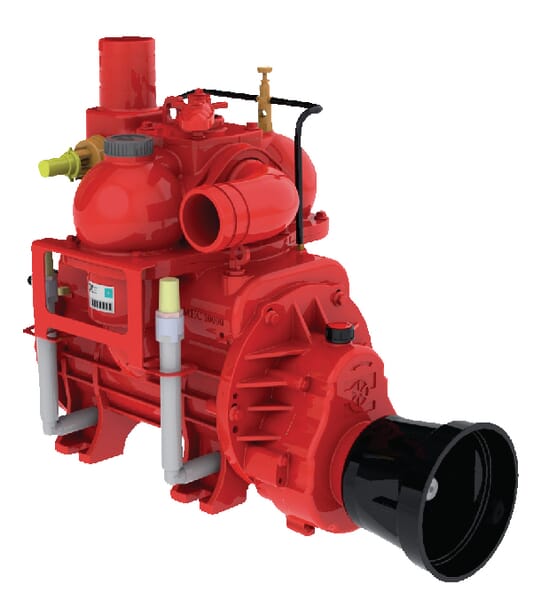

Battioni Pagani Vacuum pump std CCW auto-lube and Ballast MEC9000AB
£3,107.62 excl.
£3,729.14 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321261
Battioni Pagani Vacuum pump std CCW auto-lube and Ballast MEC13500AB
£3,412.62 excl.
£4,095.14 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000364235
Battioni Pagani Vacuum pump Direct Drive auto lube STAR84DLA
£3,428.44 excl.
£4,114.13 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000236529
Battioni Pagani Gear BR-EVO 50 BR41
£351.21 excl.
£421.45 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000236673

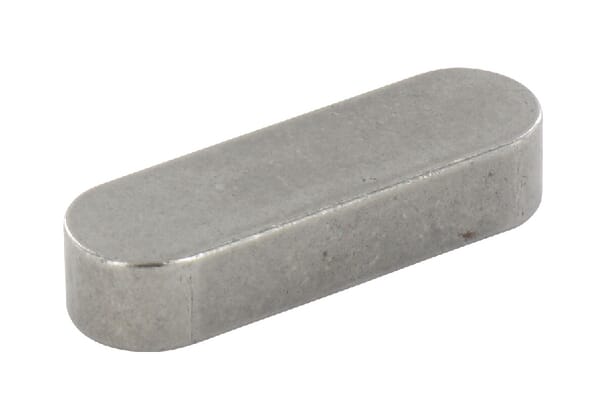

Battioni Pagani key 14x9x45 BR-EVO 90 BRE34
£14.54 excl.
£17.45 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000236661

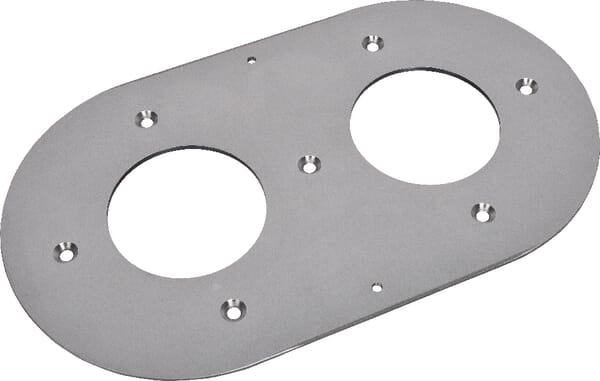

Battioni Pagani BR-EVO 90/170 front wear plate BRE20
£331.69 excl.
£398.03 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000199552

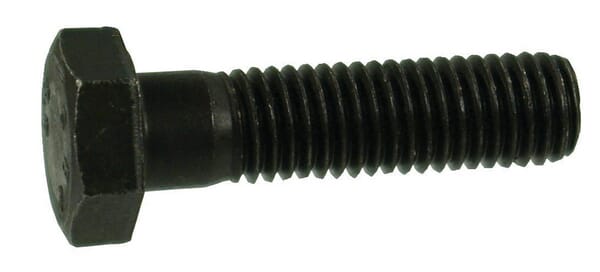

Kramp Hexagon head bolt DIN931 M12x60 steel 8.8 9311260B
