£599.23
excl. VAT
£719.08 incl. VAT
£719.08
incl. VAT
£599.23 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Low space requirement, Torque retention, Smooth transition |
| Clutch type code | FV34 |
| Connection locking type | Clamp cone |
| Cross cap diameter | 34.9 mm |
| Cross length | 93.5 mm |
| Details | Compact design, No power interruption, Absorb peak loads for short periods |

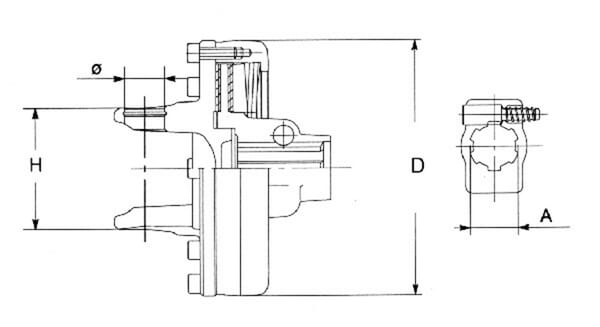

| DOutside diameter | 180 mm |
| HMounting holes distance | 106 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Max static torque | 2000 N·m |
| ØMounting holes circle diameter | 35 mm |
| Original number equivalent | 661L60303R |
| Properties | Regardless of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | 7, S8, H8, G8 |
| Suitable for machine/vehicle brand | n/a |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10924 g |
| Dimensions | 275 × 205 × 277 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000141943

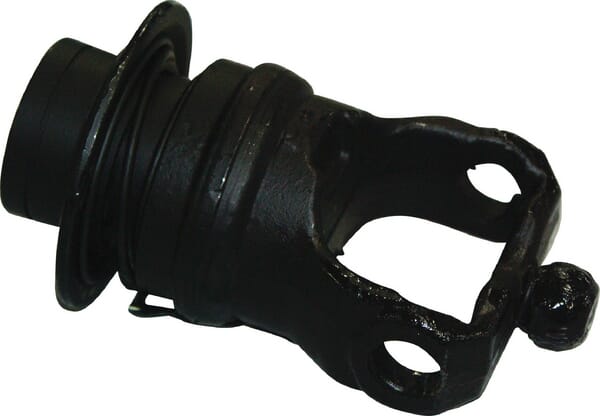

Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-21 spline, SH Bondioliand Pavesi 5730N3791
£457.11 excl.
£548.53 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000130582
Bondioli&Pavesi Yoke, clamp bolt, 1-3/8"-6 spline, 6/G7/H7 Bondioliand Pavesi 5090H0360
£103.88 excl.
£124.66 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000037169
Bondioli&Pavesi Profile tube outer SFT S4/S5 diameter in: 44.7 diameter out: 50.2x2.8mm L: 1m Bondioliand Pavesi 122421000R06
£113.13 excl.
£135.76 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000065917
Bondioli&Pavesi Yoke, Profile tube, 41mm, 9 Bondioliand Pavesi 204196852
£162.01 excl.
£194.41 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000150726
Bondioli&Pavesi Overrunning clutch RA2 G7/H7 601206603R
£441.18 excl.
£529.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144795

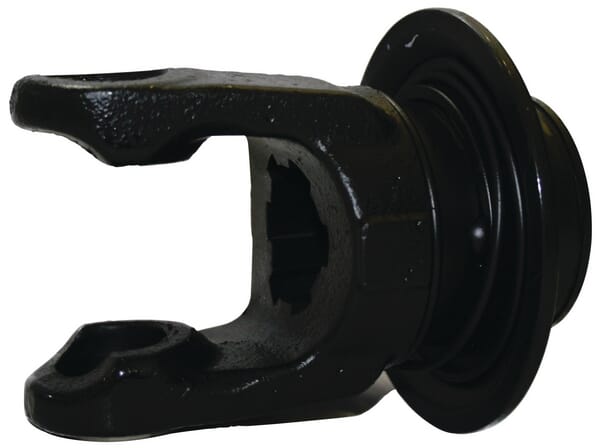

Bondioli&Pavesi Yoke, quick disconnect, 1-3/4"-20 spline, 6/G7/H7 Bondioliand Pavesi 5720H3855
