£624.79
excl. VAT
£749.75 incl. VAT
£749.75
incl. VAT
£624.79 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Low space requirement, Torque retention, Smooth transition |
| Clutch type code | FV34 |
| Connection locking type | Clamp cone |

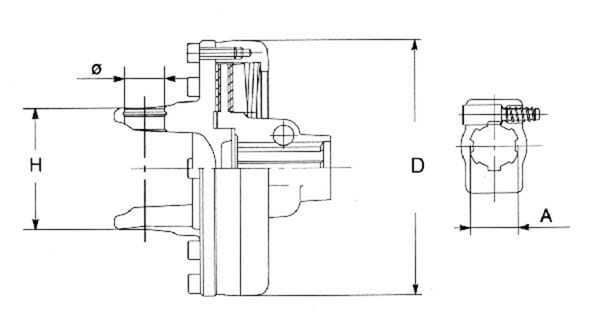

| Cross cap diameter | 34.9 mm |
| Cross length | 93.5 mm |
| Details | Compact design, No power interruption, Absorb peak loads for short periods |
| DOutside diameter | 180 mm |
| HMounting holes distance | 106 mm |
| Inside connection diamter inch and splines | 1.3/4-6 |
| Max static torque | 2000 N·m |
| ØMounting holes circle diameter | 35 mm |
| Original number equivalent | 661L60304R |
| Properties | Regardless of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | S8, H8, 108 |
| Suitable for machine/vehicle brand | n/a |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10840 g |
| Dimensions | 274 × 205 × 279 mm |
| Dangerous goods | No |
