£258.36
excl. VAT
£310.03 incl. VAT
£310.03
incl. VAT
£258.36 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Fertiliser pump, Shredder, Light balers |
|---|---|
| Benefits | Prevents against subsequent damage, Easy to start up |
| Clutch type code | LB |
| Connection inside diameter by machine side | 30 mm |
| Connection outside diameter tractor side inch and splines | 1.3/4-6 |
| Details | Drive fully disconnected, Repairable by replacing a shear bolt |
| Max dynamic torque | 2700 N·m |
| Properties | Regardless of direction of rotation, Power transmission via shear bolts |
| Shaft size code | 6, S7, G7 |
| Share bolts circle radius | 55 |

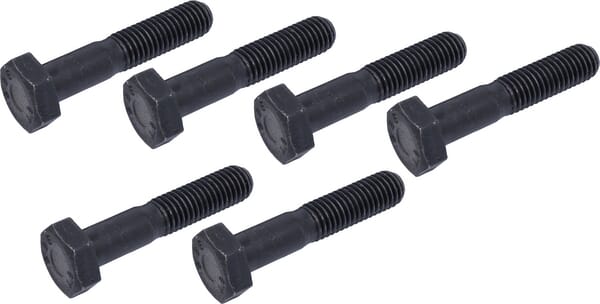

| Share bolts thread diameter | M10 |
| Share bolts thread length | 50 |
| Shear bolts quality | 8.8 (steel) |
| Technical info | Protects against blockages and overload |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4410 g |
| Dimensions | 170 × 150 × 115 mm |
| Dangerous goods | No |
