£1,200.12
excl. VAT
£1,440.14 incl. VAT
£1,440.14
incl. VAT
£1,200.12 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Benefits | Drive security device, No time lost in restoring torque |
|---|---|
| Clutch type code | LR24 |
| Connection locking type | Clamp bolt (interfering) |
| Cross cap diameter | 35 mm |
| Cross length | 93.5 mm |
| Details | Drive interrupted on overload., Automatically switches on at lower speed. |
| Direction of rotation | Right |
| DOutside diameter | 151 mm |
| Inside connection diamter inch and splines | 1.3/4-6 |
| Max dynamic torque | 205 N·m |
| Max. rotation speed | 1000 r/min |
| Max static torque | 2050 N·m |
| Original number equivalent | 6WLE99901R |
| Properties | 1 direction of rotation |
| Shaft size code | 7, G8, S8, H8 |
| Suitable for machine/vehicle brand | n/a |
| Technical info | Torque can be set to pulsing by reducing the speed |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11272 g |
| Dimensions | 290 × 150 × 150 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000192637
Bondioli&Pavesi PTO shaft G9 L: 1810mm 8G9N181CE007002
£638.44 excl.
£766.13 incl.
In stock
Expected to ship on Friday 18 September
BPA000133346
Bondioli&Pavesi Guard cone outer Size 10 517080030
£69.04 excl.
£82.85 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000039378

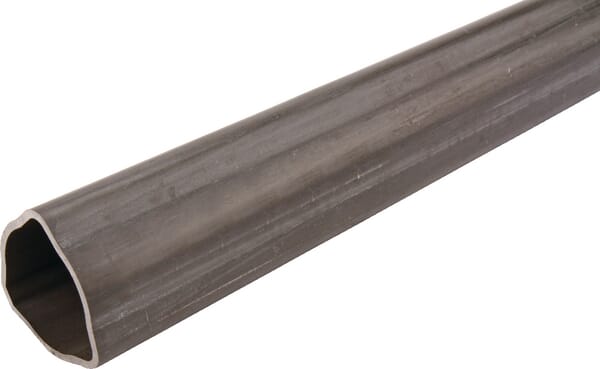

Bondioli&Pavesi Profile tube triangular 2/G2 diameter in: 29.6 diameter out: 36x3.2mm L: 3m Bondioliand Pavesi 125053000R06
£227.92 excl.
£273.50 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000077330
Bondioli&Pavesi Ring outer Global G2 255021002R02
£14.47 excl.
£17.36 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000112398

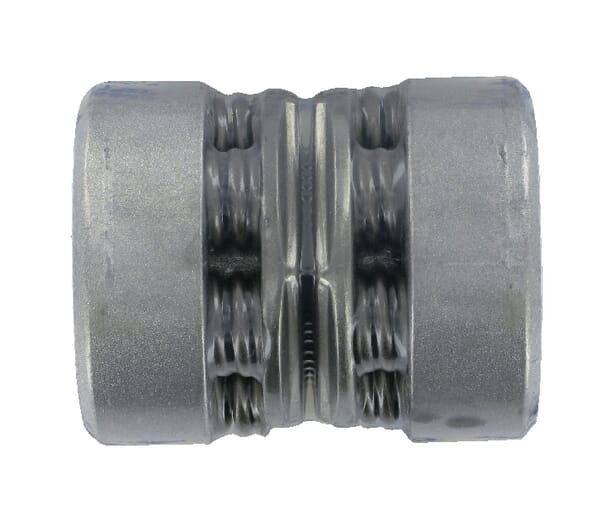

Bondioli&Pavesi Spring pack LR24 2500Nm asy v 421166503R
£198.26 excl.
£237.91 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000131542
Bondioli&Pavesi Yoke, double, 4/G4/S4 Bondioliand Pavesi 5110E0052
£362.01 excl.
£434.41 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
Free shipping
BPA000248138
Bondioli&Pavesi Wide angle PTO shaft S6 L 1210mm CS6R121CEWR81R7
£2,035.02 excl.
£2,442.03 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000204104

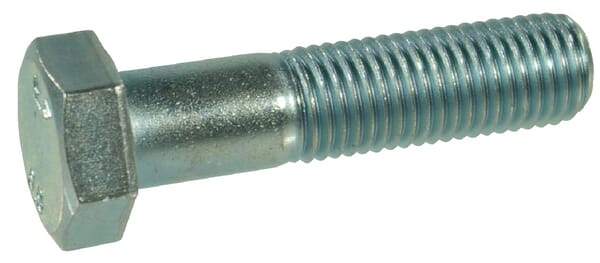

Kramp Hexagon head bolt DIN960 M16x1.50x80 steel zinc-plated 8.8 960161580
