£207.59
excl. VAT
£249.11 incl. VAT
£249.11
incl. VAT
£207.59 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

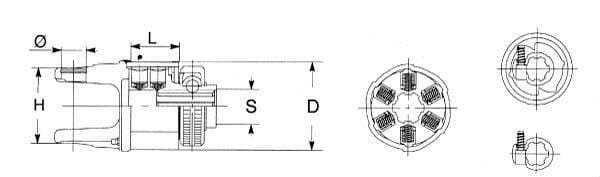

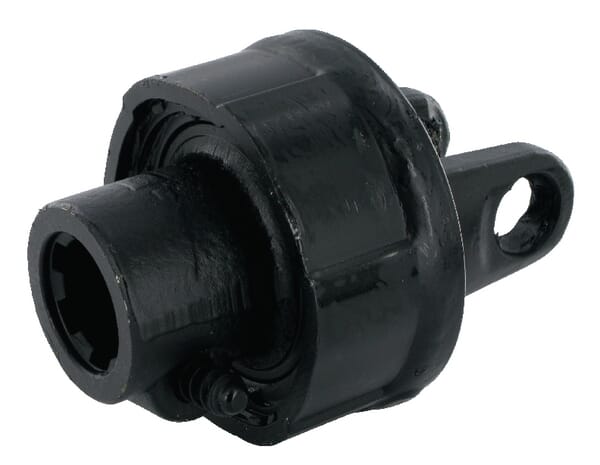

Product details
| Application range | Tedders, Silo spreaders |
|---|---|
| Benefits | Audible signal on overload, Pulsating power transmission in the event of slipping |
| Clutch type code | SA1 |
| Connection locking type | Push pin |
| Cross cap diameter | 22 mm |
| Cross length | 54 mm |
| Details | If slipping through, the clutch begins to rattle, Limits the torque in the event of an overload |
| DOutside diameter | 96 mm |
| HMounting holes distance | 63.5 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 32 mm |
| Long description | Star ratchet / radial pin clutches, series SA-1 |
| Max static torque | 400 N·m |
| ØMounting holes circle diameter | 22 mm |
| Original number equivalent | 610124001R |
| Properties | Direction of rotation to the right, Shocks and vibrations, The clutch can only transmit 15% of the set torque to the left |
| Shaft size code | 1, S1, G1 |
| Suitable for machine/vehicle brand | n/a |
| Technical info | Force transmission using cam and springs |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2500 g |
| Dimensions | 150 × 110 × 110 mm |
| Dangerous goods | No |
