£204.82
excl. VAT
£245.78 incl. VAT
£245.78
incl. VAT
£204.82 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

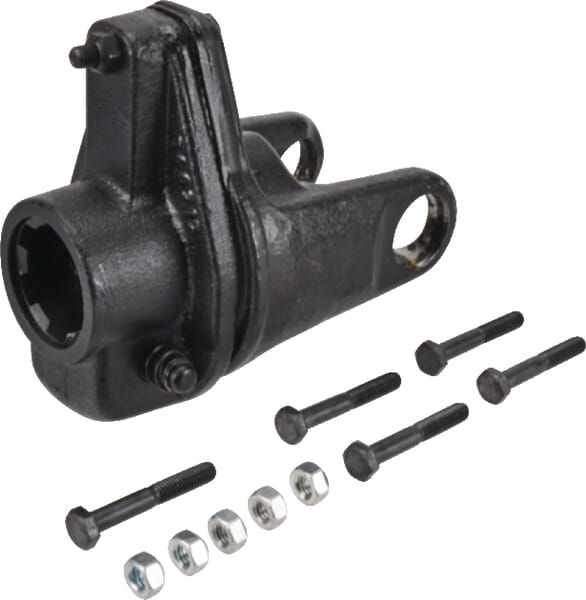

Product details
| Application range | Fertiliser pump, Shredder, Light balers |
|---|---|
| Benefits | Prevents against subsequent damage, Easy to start up |
| Clutch type code | LB |
| Connection inside diameter by machine side | 24 mm |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Details | Drive fully disconnected, Repairable by replacing a shear bolt |
| Max dynamic torque | 950 N·m |
| Properties | Regardless of direction of rotation, Power transmission via shear bolts |
| Shaft size code | 2, S2, G2 |
| Share bolts circle radius | 55 |
| Share bolts thread diameter | M6 |
| Share bolts thread length | 40 |
| Shear bolts quality | 8.8 (steel) |
| Technical info | Protects against blockages and overload |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2115 g |
| Dimensions | 135 × 115 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000152529
Bondioli&Pavesi Shearbolt clutch S5/S6/105 6060G0320R
£218.59 excl.
£262.31 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000148256
Bondioli&Pavesi Protection complete GR.G 5CG4086FXSS
£109.89 excl.
£131.87 incl.
In stock
Expected to ship on Friday 18 September
BPA000037104
Bondioli&Pavesi Profile tube outer SFT S1 diameter in: 31.2 diameter out: 35.2x2mm L: 1m Bondioliand Pavesi 122321000R06
£81.91 excl.
£98.29 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000148286
Bondioli&Pavesi PTO guard complete, L: 1210mm Bondioliand Pavesi 5CS2121FXWW
£329.19 excl.
£395.03 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000192586
Bondioli&Pavesi Wide angle cardan shaft G2 8G2R121CEW00001
£592.64 excl.
£711.17 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000067913

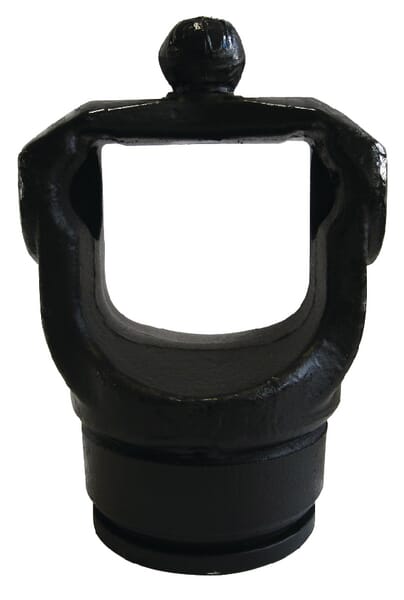

Bondioli&Pavesi Yoke, profile tube, 54mm, 8 Bondioliand Pavesi 2150L6873
