£561.85
excl. VAT
£674.22 incl. VAT
£674.22
incl. VAT
£561.85 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

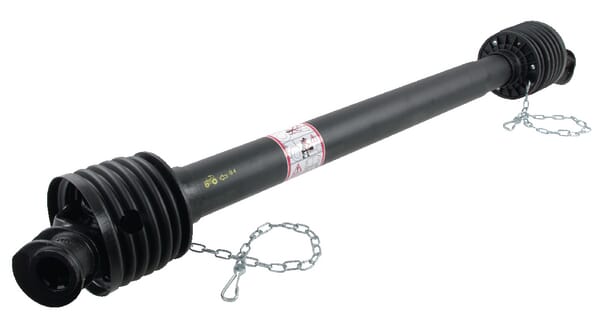

Product details
| Application range | Crop sprayers, Slurry tanks, Manure spreaders, Hay rakes, Tedders |
|---|---|
| Attachment machine side | Radial pin clutch |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extremely reliable, with a low power-to-weight ratio, Extended lubrication intervals of up to 50 hours, Simple maintenance |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |

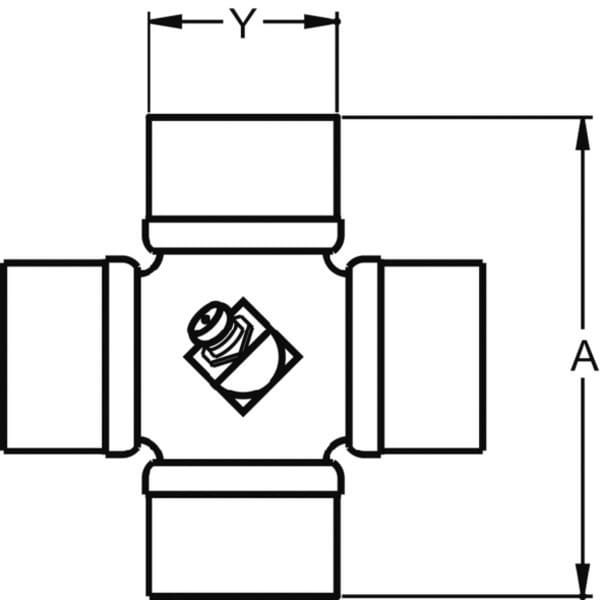

| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 74.6 mm |
| Details | Enhanced protection concept, Optimised cross journals with double lip seal, Optimally accessible grease nipples (grease nipples aligned in a row) |
| Inner tube large outside diameter | 36 mm |
| Inner tube wall thickness | 4 mm |
| Length | 1010 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Push pin |
| Max. clutch torque | 1000 N·m |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.4 mm |
| Profile tube shape | Triangular |
| Properties | CE marking available |
| Size code | G4 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
Free shipping
BPA000038960
Bondioli&Pavesi Profile tube outer SFT H8/S9 diameter in: 59 diameter out: 66x3.5mm L: 3m Bondioliand Pavesi 122113000R06
£444.22 excl.
£533.06 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000150646

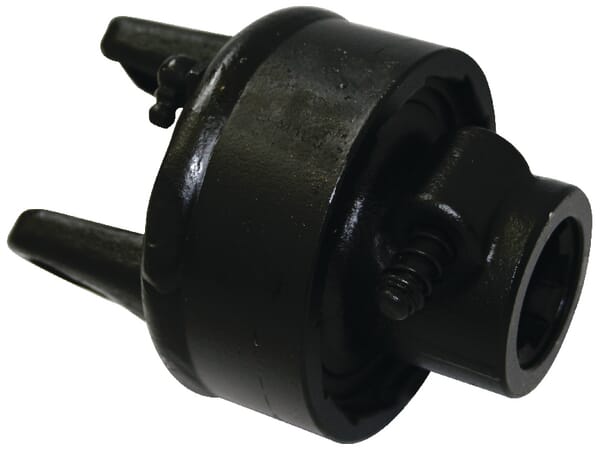

Bondioli&Pavesi Overrunning clutch RA1/S4/104 1-3/8z6 601104701R
£271.91 excl.
£326.29 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144808

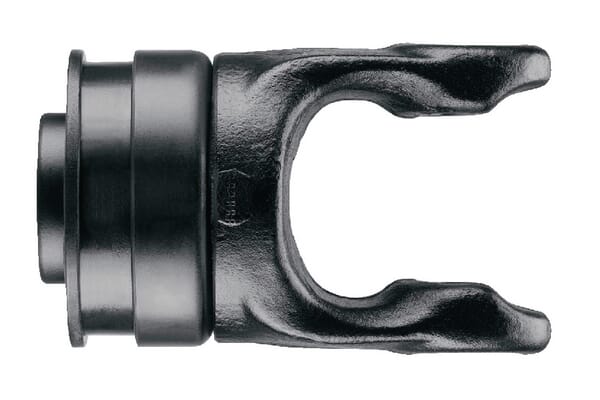

Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-6 spline, SH Bondioliand Pavesi 5720N0352
£346.63 excl.
£415.96 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000065889

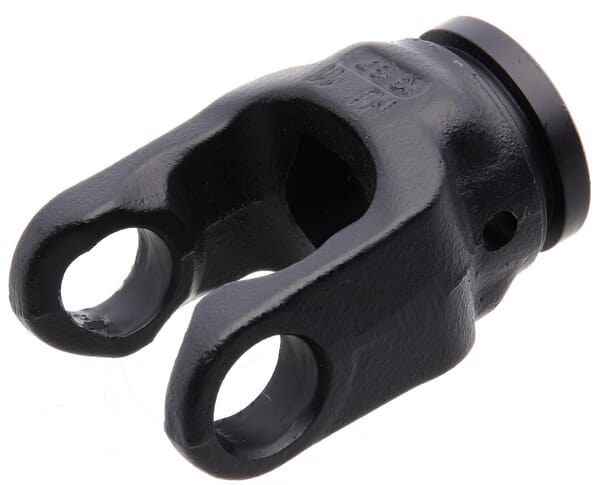

Bondioli&Pavesi Yoke, Profile tube, 54mm, 8 Bondioliand Pavesi 204086861
£76.73 excl.
£92.08 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000250250
Bondioli&Pavesi PTO Shaft S8 L:1510mm DS8R151CEKR7K05
£1,898.24 excl.
£2,277.89 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000144818

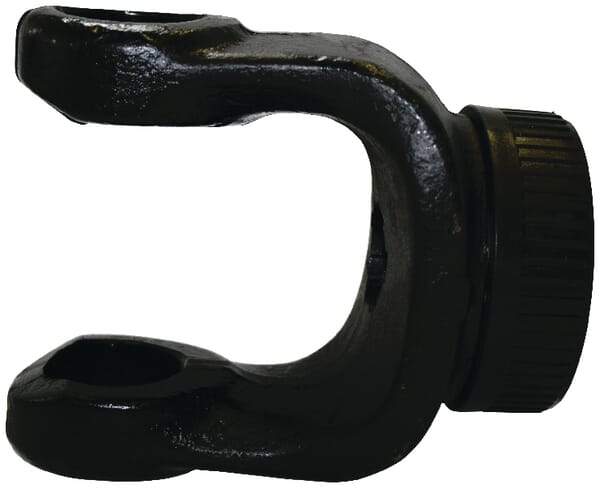

Bondioli&Pavesi Yoke, Quick disconnect, 1-3/4"-6 spline, 10 Bondioliand Pavesi 572100451
£229.39 excl.
£275.27 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping
BPA000284018
Kramp High pressure hose 25m 2SC DN10 blue 3/8" male thread, with sliding balls HD103825SB
£590.85 excl.
£709.02 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000155219

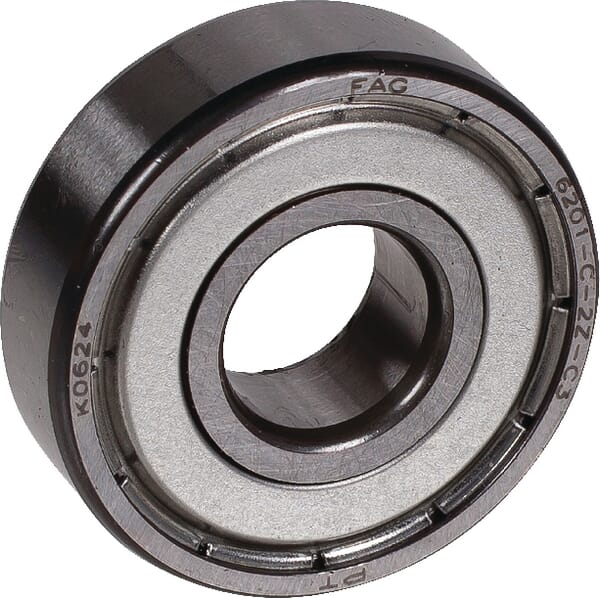

FAG Deep groove ball bearing 12x32x10mm INA/FAG 6201ZZC3
£3.95 excl.
£4.74 incl.
In stock
Expected to ship on Monday 21 September
BPA000199363

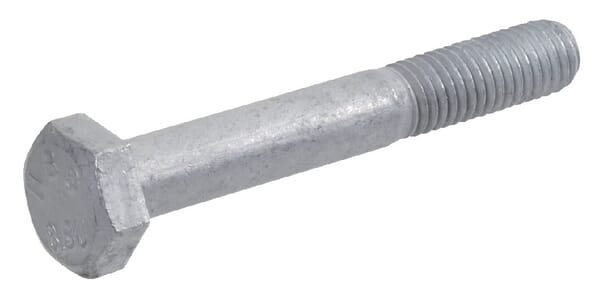

Kramp Hexagon head bolt DIN931 M10x50 steel hot dip galvanized 8.8 9311050TV
£0.47 excl.
£0.56 incl.
In stock
Expected to ship on Monday 21 September
BPA000150848

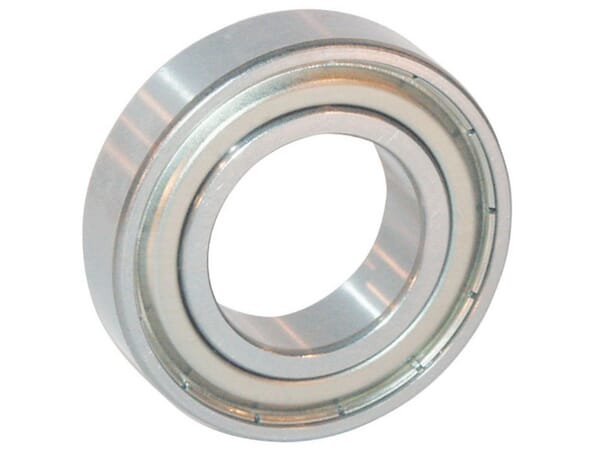

FAG Deep groove ball bearing 90x140x24mm INA/FAG 6018ZZ
£61.51 excl.
£73.81 incl.
In stock
Expected to ship on Monday 21 September
BPA000198801
Kramp Hexagon head bolt DIN931 M8x75 steel zinc-plated 10.9 931875109
£0.44 excl.
£0.53 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000046912
Kramp Oil seal 148x170x15mm type:CC DIN 3760 1x 14817015CCP001
£13.77 excl.
£16.52 incl.
In stock
Expected to ship on Monday 21 September
BPA000199681
Kramp Hexagon head bolt DIN931 M14x80 steel zinc-plated 8.8 9311480
£0.65 excl.
£0.78 incl.
In stock
Expected to ship on Monday 21 September
BPA000197592

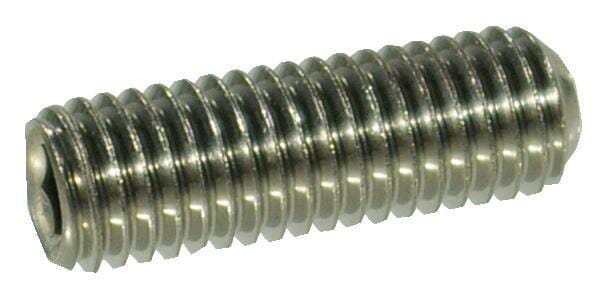

Kramp Grub screw DIN916 M10x50 stainless steel A2 9161050RVSP025
