£523.69
excl. VAT
£628.43 incl. VAT
£628.43
incl. VAT
£523.69 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

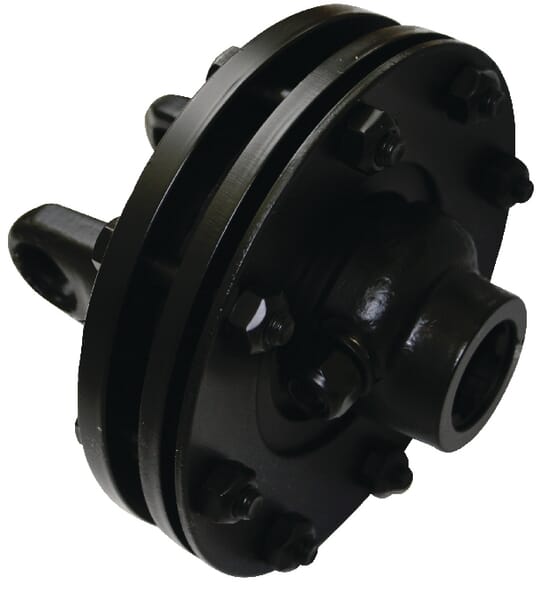

Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Low space requirement, Torque retention, Smooth transition |
| Clutch type code | FV34 |
| Connection locking type | Clamp cone |

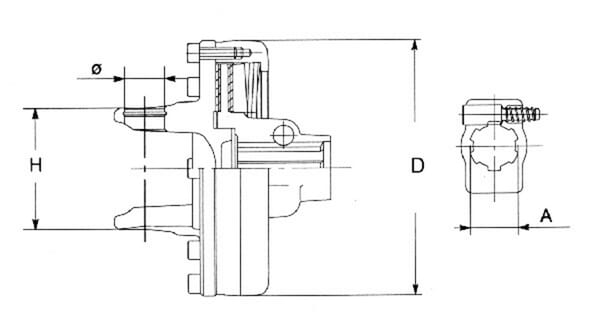

| Cross cap diameter | 30.2 mm |
| Cross length | 91.5 mm |
| Details | Compact design, No power interruption, Absorb peak loads for short periods |
| DOutside diameter | 180 mm |
| HMounting holes distance | 103 mm |
| Inside connection diamter inch and splines | 1.3/4-6 |
| Max dynamic torque | 145 N·m |
| Max static torque | 1450 N·m |
| ØMounting holes circle diameter | 30.2 mm |
| Original number equivalent | 661H53304R |
| Properties | Regardless of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | 6, G7, S7, H7 |
| Suitable for machine/vehicle brand | n/a |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12457 g |
| Dimensions | 225 × 225 × 205 mm |
| Dangerous goods | No |
You might also like
BPA000108888
Bondioli&Pavesi Cross journal diameter 30.2x91.5mm Series 100 Gr 6 / S7 Bondioliand Pavesi 4120H0012R30
£62.11 excl.
£74.53 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000144809

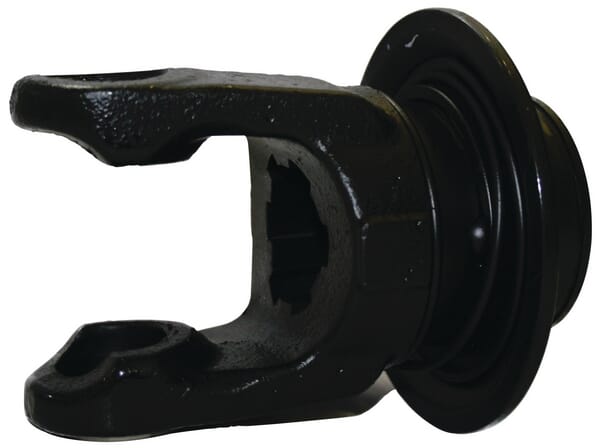

Bondioli&Pavesi Yoke, quick disconnect, 1-3/4"-6 spline, SH Bondioliand Pavesi 5720N0451
