£601.27
excl. VAT
£721.52 incl. VAT
£721.52
incl. VAT
£601.27 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Low space requirement, Torque retention, Smooth transition |
| Clutch type code | FV34 |
| Connection locking type | Clamp cone |

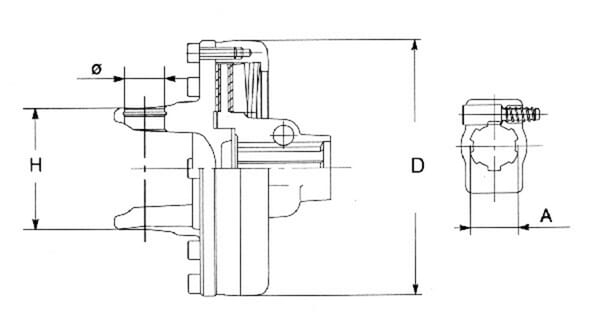

| Cross cap diameter | 34.9 mm |
| Cross length | 106 mm |
| Details | Compact design, No power interruption, Absorb peak loads for short periods |
| DOutside diameter | 180 mm |
| HMounting holes distance | 119.6 mm |
| Inside connection diamter inch and splines | 1.3/4-6 |
| Max dynamic torque | 180 N·m |
| Max static torque | 1800 N·m |
| ØMounting holes circle diameter | 34.9 mm |
| Original number equivalent | 661M58304R |
| Properties | Regardless of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | 8, G9, S9 |
| Suitable for machine/vehicle brand | n/a |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11000 g |
| Dimensions | 275 × 195 × 195 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000156855

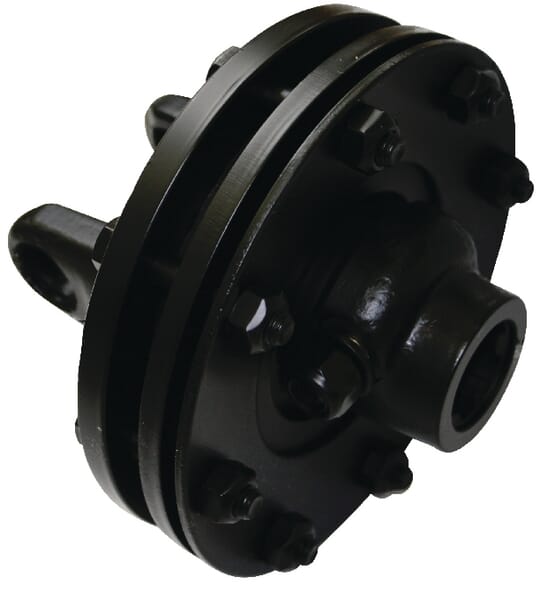

Bondioli&Pavesi Friction clutch FV34 G9/S9 1800Nm 661M58303R
£616.13 excl.
£739.36 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000248128
Bondioli&Pavesi PTO half shaft, inner S6 L 1210mm CS6R121CE1R3IWSA
£516.90 excl.
£620.28 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000068074

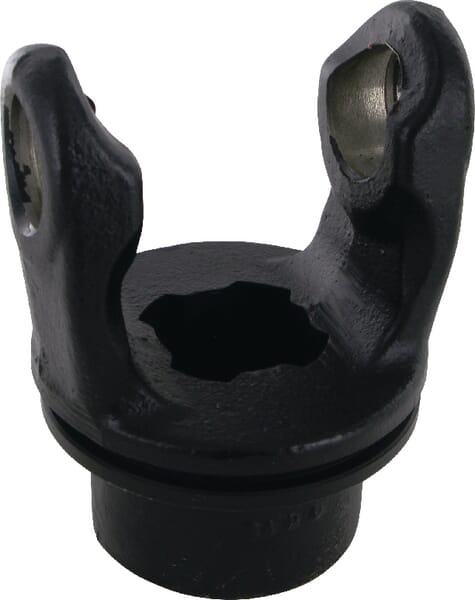

Bondioli&Pavesi Yoke, Profile tube, 46.9mm, S7 Bondioliand Pavesi 204S76856
£91.18 excl.
£109.42 incl.
In stock
Expected to ship on Friday 18 September
BPA000130246

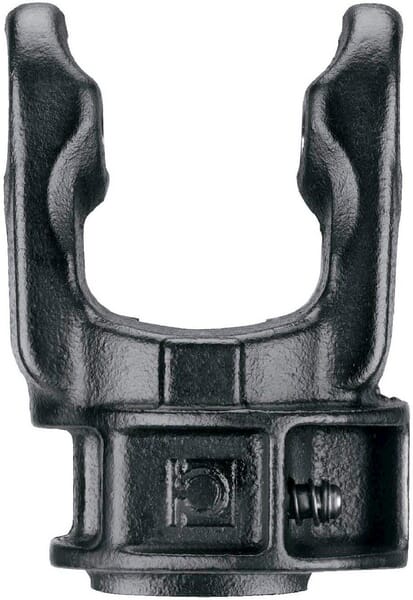

Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-6 spline, 7/G8/S8/H8 Bondioliand Pavesi 5070L0355
£94.48 excl.
£113.38 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000179887

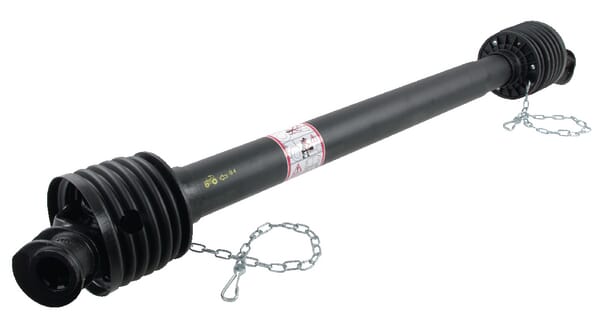

Bondioli&Pavesi PTO shaft G8 L: 860mm, Bondioliand Pavesi 7G8N086CE007007
