£456.25
excl. VAT
£547.50 incl. VAT
£547.50
incl. VAT
£456.25 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Crop sprayers, Slurry tanks, Manure spreaders, Hay rakes, Tedders |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extremely reliable, with a low power-to-weight ratio, Extended lubrication intervals of up to 50 hours, Simple maintenance |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 35 mm |
| Cross joint bush diameter by tractor side | 35 mm |
| Cross joint length by machine side | 106 mm |
| Details | Enhanced protection concept, Optimised cross journals with double lip seal, Optimally accessible grease nipples (grease nipples aligned in a row) |
| Length | 860 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Push pin |
| Power 1000 rpm | 96 kW |
| Power 540 rpm | 61 kW |
| Properties | CE marking available |
| Size code | G8 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 19500 g |
| Dimensions | 1060 × 155 × 155 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000130596

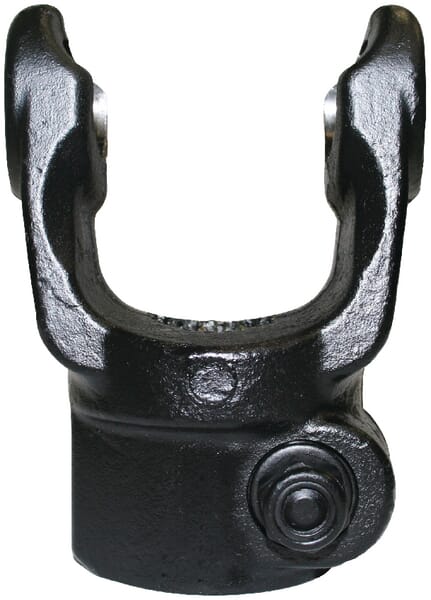

Bondioli&Pavesi Yoke, clamp bolt, 1-3/4"-6 spline, S0 Bondioliand Pavesi 5090S0460
£179.73 excl.
£215.68 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000068561

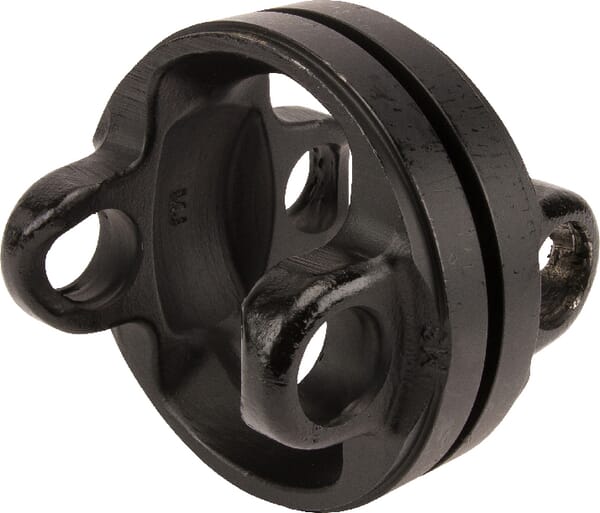

Bondioli&Pavesi Yoke, Double, S6/H7 Bondioliand Pavesi 2080G0064
