£1,179.00
excl. VAT
£1,414.80 incl. VAT
£1,414.80
incl. VAT
£1,179.00 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Agricultural applications, Devices for front attachment |
|---|---|
| Benefits | Wide range of applications |
| Connection 1 outside diameter | n/a |
| Connection 1 Outside Diameter inch and splines | 1.3/8-6 |
| Connection 2 outside diameter | n/a |
| Connection 2 Outside Diameter inch and splines | 1.3/8-6 |
| Connection 3 outside diameter | n/a |
| Connection 3 Outside Diameter inch and splines | n/a |
| Contains oil | No |

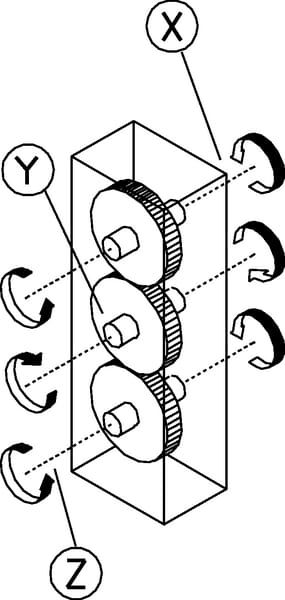

| Details | Transmission ratio 2:1, 1:1 or 1:2 possible, Maintaining direction or reversing direction possible |
| Gear arrangement reducing | 7-8 |
| Housing material | Cast iron |
| Max. input power | 44 kW |
| Max. input rotation speed | 1000 r/min |
| Max. output rotation speed | 1080 r/min |
| Model | IMR6 |
| Product details | The gearbox is delivered without oil and must be filled before first use., First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year. |
| Properties | Lubricant filling: SAE 90EP 1.0 kg |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 24050 g |
| Dimensions | 420 × 185 × 110 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000144802
Bondioli&Pavesi Yoke, quick disconnect, 1-3/4"-6 spline, 8/S9 Bondioliand Pavesi 5720M0451
£191.28 excl.
£229.54 incl.
In stock
Expected to ship on Friday 18 September
BPA000076016

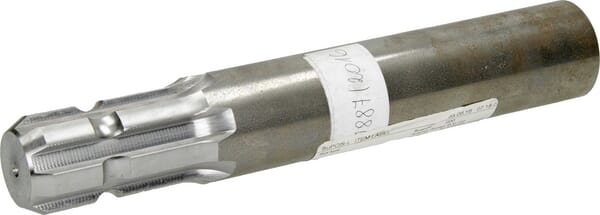

Bondioli&Pavesi Profilwel 1-side splined shaft 262000406R02
£74.14 excl.
£88.97 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000067914
Bondioli&Pavesi Yoke, profile tube, 66mm, S9 Bondioliand Pavesi 2150M6851
£302.45 excl.
£362.94 incl.
In stock
Expected to ship on Friday 18 September
BPA000077346

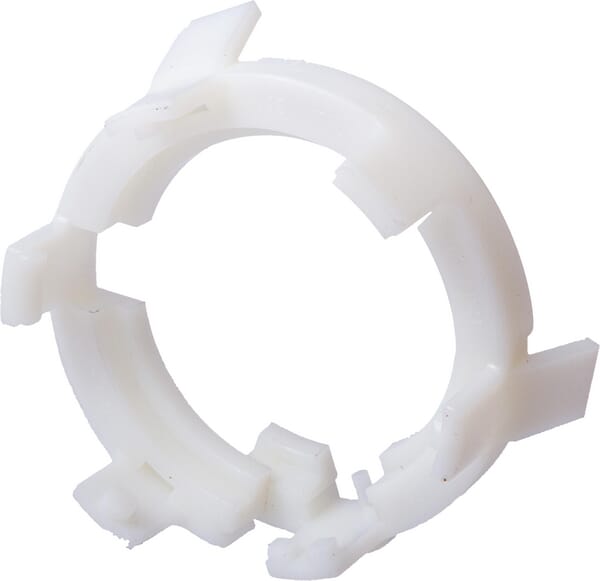

Bondioli&Pavesi Bearing ring inside diameter 68.4 255080006R02
£17.66 excl.
£21.19 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000160451

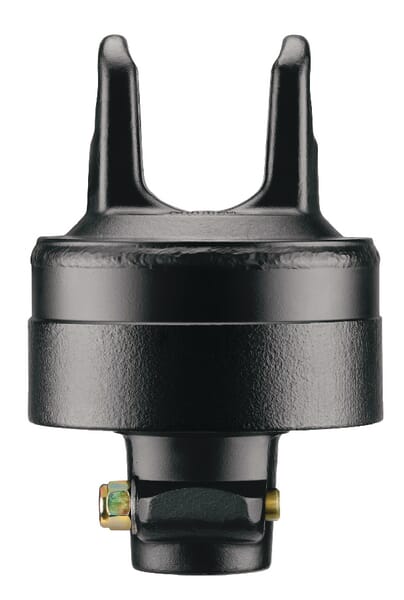

Bondioli&Pavesi Clutch LR35 S9 3500Nm 6WM481038R
