£289.47
excl. VAT
£347.36 incl. VAT
£347.36
incl. VAT
£289.47 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Crop sprayers, Slurry tanks, Manure spreaders, Hay rakes, Tedders |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extremely reliable, with a low power-to-weight ratio, Extended lubrication intervals of up to 50 hours, Simple maintenance |
| Connection outside diameter machine side inch and splines | 1-15 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 22 mm |
| Cross joint bush diameter by tractor side | 22 mm |
| Cross joint length by machine side | 54 mm |
| Cross joint length by tractor side | 54 mm |
| Details | Enhanced protection concept, Optimised cross journals with double lip seal, Optimally accessible grease nipples (grease nipples aligned in a row) |
| Length | 860 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Push pin |
| Properties | CE marking available |
| Size code | G1 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7000 g |
| Dimensions | 1030 × 130 × 130 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000069923
Bondioli&Pavesi Profile tube inner coated SFT S6 diameter in: 37.9 diameter out: 47.4x4.8mm L: 1m wide angle Bondioliand Pavesi 2453N1000R06
£192.01 excl.
£230.41 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000148604
Bondioli&Pavesi Funnel outer 5TNN1S6121FR
£83.51 excl.
£100.21 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000066927

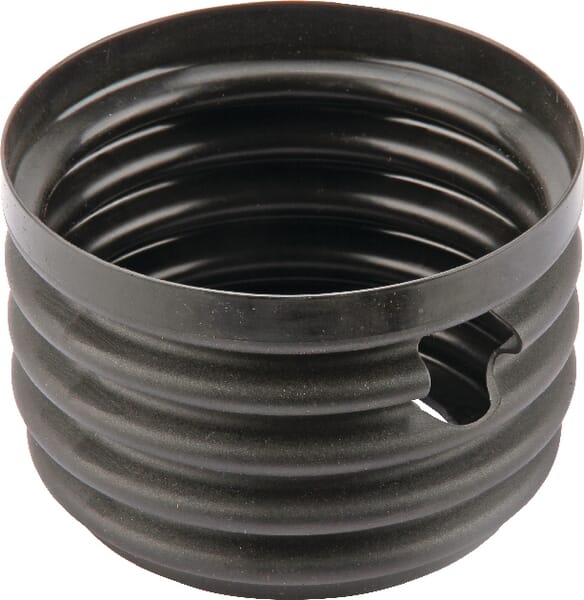

Bondioli&Pavesi Guard cone 2190L0201R
£36.04 excl.
£43.25 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000133346
Bondioli&Pavesi Guard cone outer Size 10 517080030
£69.04 excl.
£82.85 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000248170

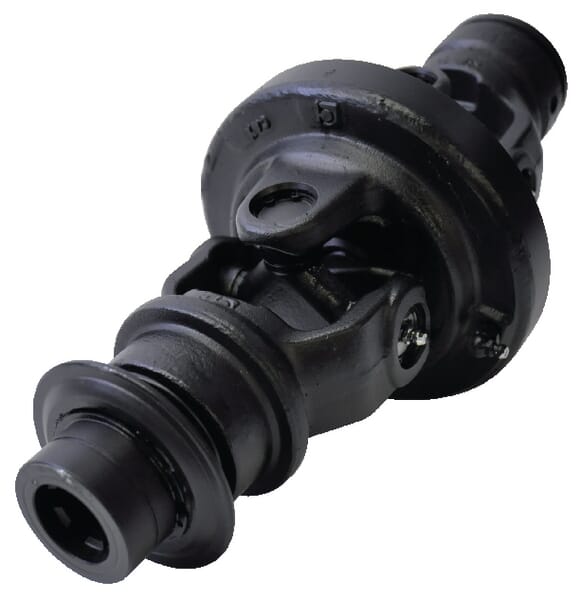

Bondioli&Pavesi Wide-angle joint S9 CS9GWW49WR7
£1,331.98 excl.
£1,598.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000148307

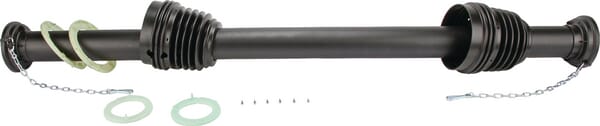

Bondioli&Pavesi Safety Guard wide angle 5CS8151FXKK
