£256.95
excl. VAT
£308.34 incl. VAT
£308.34
incl. VAT
£256.95 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

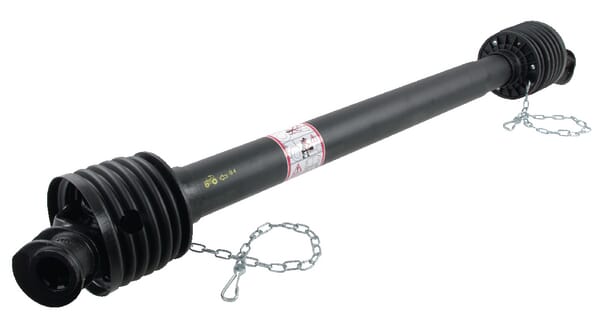

Product details
| Application range | Crop sprayers, Slurry tanks, Manure spreaders, Hay rakes, Tedders |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extremely reliable, with a low power-to-weight ratio, Extended lubrication intervals of up to 50 hours, Simple maintenance |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |

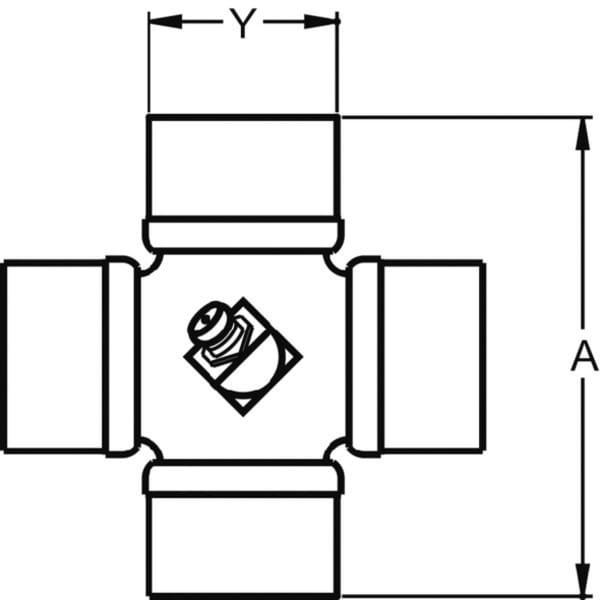

| Cross joint bush diameter by machine side | 23.8 mm |
| Cross joint bush diameter by tractor side | 23.8 mm |
| Cross joint length by machine side | 61.3 mm |
| Cross joint length by tractor side | 61.3 mm |
| Details | Enhanced protection concept, Optimised cross journals with double lip seal, Optimally accessible grease nipples (grease nipples aligned in a row) |
| Length | 810 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Push pin |
| Properties | CE marking available |
| Size code | G2 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8000 g |
| Dimensions | 1064 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
BPA000094978

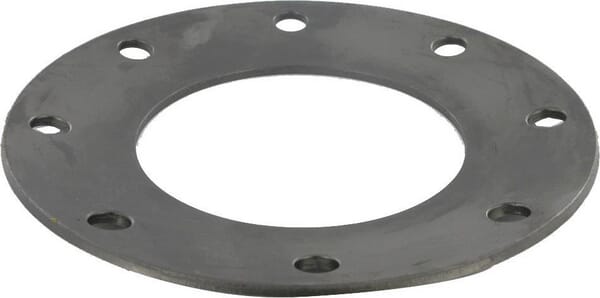

Bondioli&Pavesi Plate Spring 180x100x3,75 367008860
