£471.70
excl. VAT
£566.04 incl. VAT
£566.04
incl. VAT
£471.70 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Crop sprayers, Slurry tankers, Manure spreader, Windrowers, Hay, Silo mill |
|---|---|

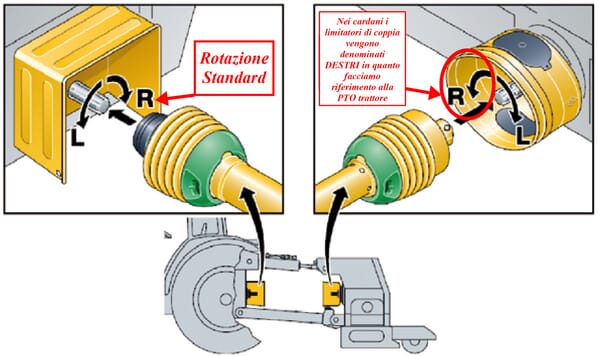

| Attachment machine side | Overrunning clutch |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extended lubrication intervals of up to 50 hours, Simple maintenance, Extremely reliable, with a low power-to-weight ratio |
| Clutch type code | RA1 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 74.6 mm |
| Details | PTO shaft with integrated freewheel |
| Length | 860 mm |
| Max. clutch torque | 2000 N·m |
| Power 1000 rpm | 40 kW |
| Power 540 rpm | 26 kW |
| Properties | Enhanced protection concept, Optimised intersection; needle bearings with double-lipped seal rings, Optimum access to all grease nipples, (grease nipples are all positioned along a single line) |
| Size code | G4 |
| Technical info | CE certification |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 14600 g |
| Dimensions | 1100 × 140 × 140 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000067915
Bondioli&Pavesi Yoke, profile tube, 70.2mm, SH Bondioliand Pavesi 2150N6851
£386.51 excl.
£463.81 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000192593
Bondioli&Pavesi Wide-angle shaft 8G4R161CEWR7007
£1,028.60 excl.
£1,234.32 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000077334
Bondioli&Pavesi Ring inner Global G3-G4 255041001R02
£15.27 excl.
£18.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000148275
Bondioli&Pavesi Guard SZ.7 WA1 80° 1610 mm 5CG7161FXWS
£231.02 excl.
£277.22 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000068070
Bondioli&Pavesi Yoke, Profile tube, 46.9mm, S6 Bondioliand Pavesi 204S66854
£88.70 excl.
£106.44 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000039371

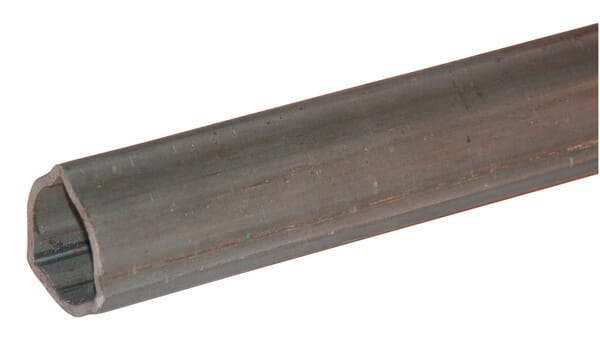

Bondioli&Pavesi Profile tube inner triangular 2/G2 diameter in: 21 diameter out: 29x4mm L: 3m Bondioliand Pavesi 125043000R06
