£330.70
excl. VAT
£396.84 incl. VAT
£396.84
incl. VAT
£330.70 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Crop sprayers, Slurry tanks, Manure spreaders, Hay rakes, Tedders |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extremely reliable, with a low power-to-weight ratio, Extended lubrication intervals of up to 50 hours, Simple maintenance |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 79.4 mm |
| Cross joint length by tractor side | 79.4 mm |
| Details | Enhanced protection concept, Optimised cross journals with double lip seal, Optimally accessible grease nipples (grease nipples aligned in a row) |
| Length | 610 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Push pin |
| Properties | CE marking available |
| Size code | G5 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11900 g |
| Dimensions | 834 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000037051

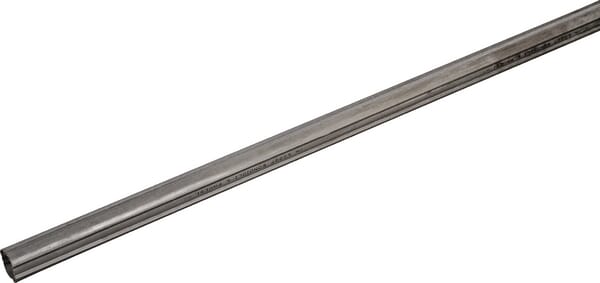

Bondioli&Pavesi Profile tube outer SFT S9/H8 diameter in: 59.5 diameter out: 66x3.3mm L: 3m wide angle Bondioliand Pavesi 122273000R06
£475.98 excl.
£571.18 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000179834

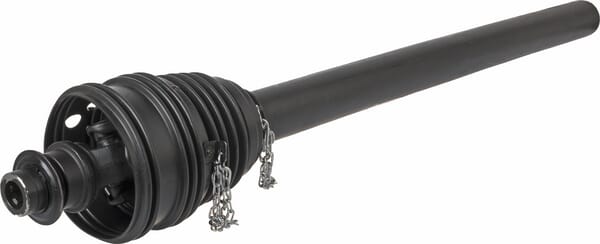

Bondioli&Pavesi Wide angle PTO half shaft, outer 6 L: 1210mm, Bondioliand Pavesi 7ER6121CEWR7
£772.94 excl.
£927.53 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000068550

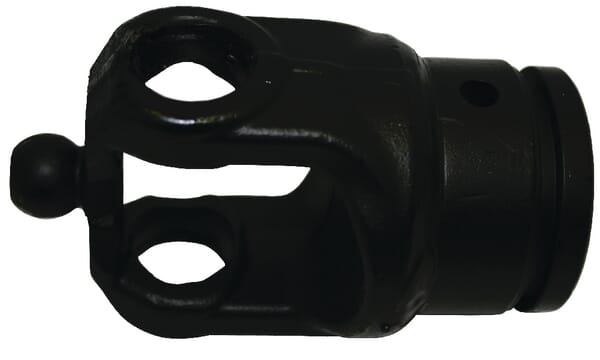

Bondioli&Pavesi Yoke, profile tube, 36mm, 2 Bondioliand Pavesi 208026873
£196.20 excl.
£235.44 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000039524
Bondioli&Pavesi Profile tube outer triangular size:2 diameter in: 30.2 diameter out: 36x2.9mm L: 3m wide angle Bondioliand Pavesi 125183000R06
£218.33 excl.
£262.00 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000068069
Bondioli&Pavesi Yoke, Profile tube, 53.9mm, S6 Bondioliand Pavesi 204S66853
£83.38 excl.
£100.06 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000248090

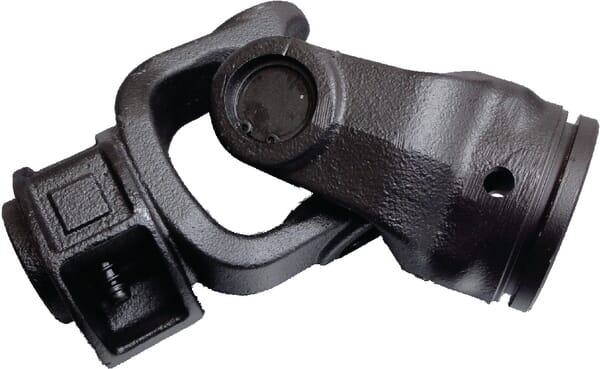

Bondioli&Pavesi Joint S4 outer CS4GC049007
