£772.94
excl. VAT
£927.53 incl. VAT
£927.53
incl. VAT
£772.94 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Attachment machine side | n/a |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Length | 1210 mm |

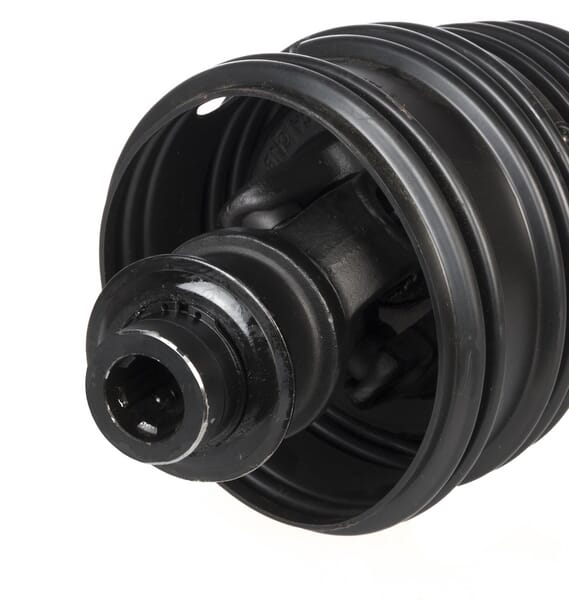

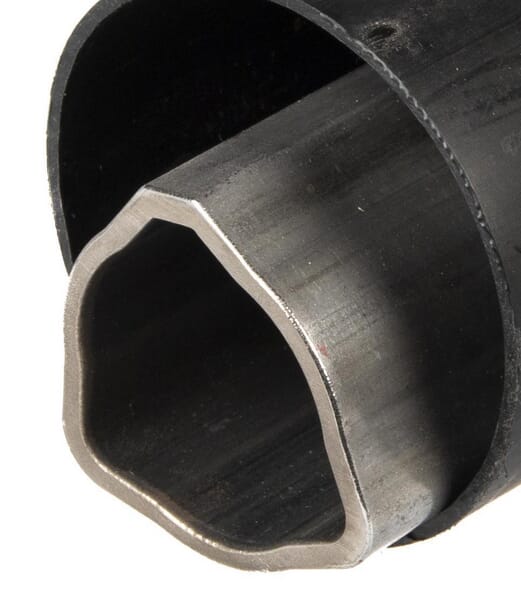

| Long description | PTO Drive Shafts - wide angle 80° inputside series 6 |
| Size code | 6 |
| Technical info | The rated power (Pn) is the power transmitted at the nominal torque (Mn). The nominal torque of the PTO shaft is defined as the torque that corresponds to a service life of 1000 hours at a working angle of 5° and a speed of 540 rpm or 1000 rpm. The maximum dynamic torque describes the maximum operating torque of the single universal joint. This torque is used to calculate the service life., The rated power of a PTO shaft in series 6 is 47 kW at 540 rpm or 74 kW at 1000 rpm. |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 18000 g |
| Dimensions | 1400 × 220 × 220 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000160445

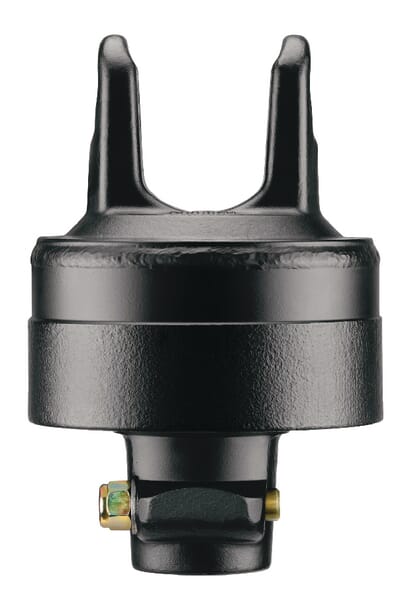

Bondioli&Pavesi Clutch LR24 S8/H8/G8 2000Nm 6WL260004R
£1,463.32 excl.
£1,755.98 incl.
In stock
Expected to ship on Friday 18 September
BPA000133320

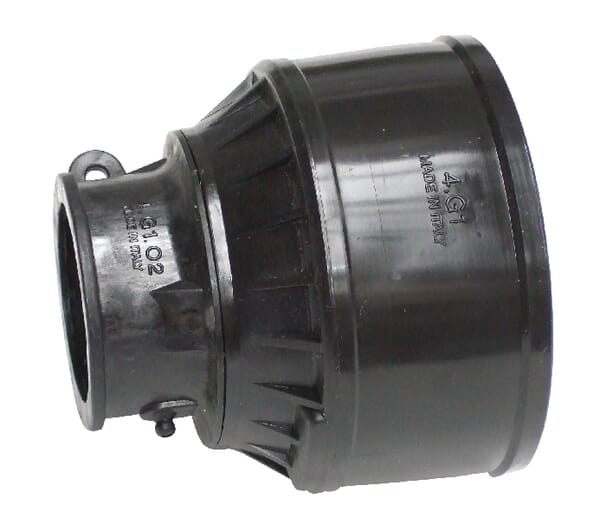

Bondioli&Pavesi Guard cone, outer size 1/2, standard 517010030
£38.34 excl.
£46.01 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000156972
Bondioli&Pavesi Friction clutch FNV34 S5/S6/G5 1350Nm 665G51103R
£854.44 excl.
£1,025.33 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000067544

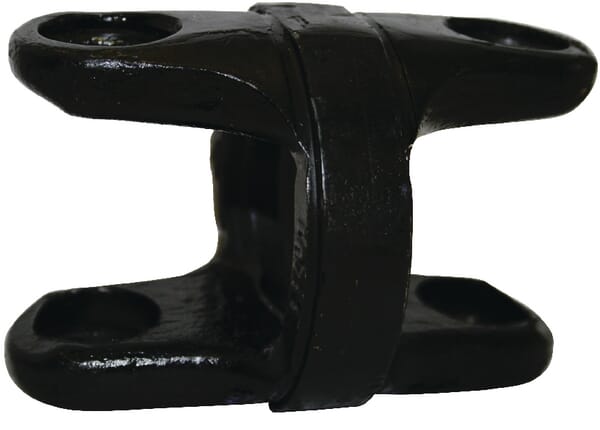

Bondioli&Pavesi Yoke, Double, 30.2mm, 6/G7/H7 Bondioliand Pavesi 213060053
£182.20 excl.
£218.64 incl.
In stock
Expected to ship on Friday 18 September
BPA000112410

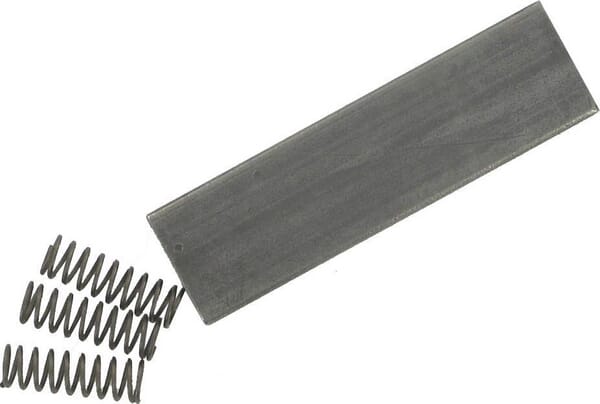

Bondioli&Pavesi Pawl and Spring set 4211L0001R06
£4.84 excl.
£5.81 incl.
In stock
Expected to ship on Friday 18 September
BPA000144791

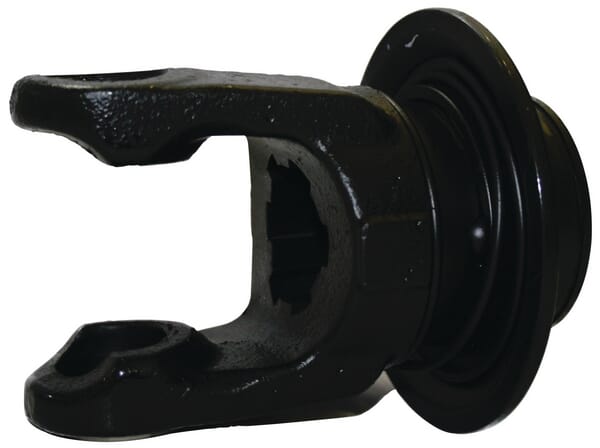

Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-6 spline, 6/G7/H7 Bondioliand Pavesi 5720H0355
