£312.30
excl. VAT
£374.76 incl. VAT
£374.76
incl. VAT
£312.30 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Crop sprayers, Slurry tanks, Manure spreaders, Hay rakes, Tedders |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extremely reliable, with a low power-to-weight ratio, Extended lubrication intervals of up to 50 hours, Simple maintenance |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |

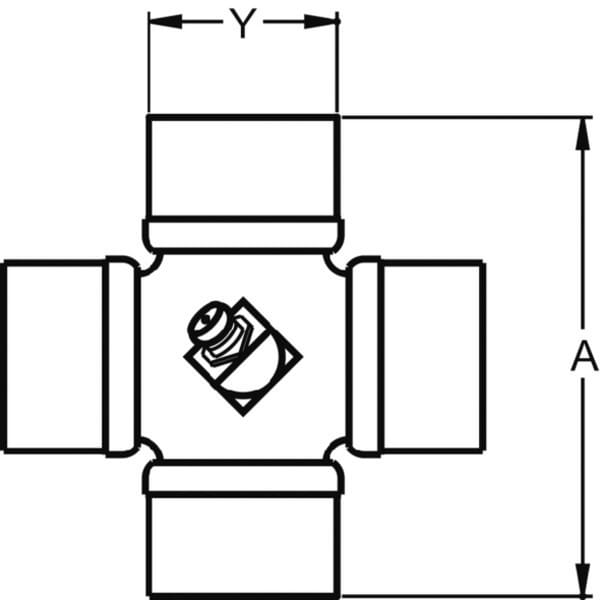

| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 91.4 mm |
| Cross joint length by tractor side | 91.4 mm |
| Details | Enhanced protection concept, Optimised cross journals with double lip seal, Optimally accessible grease nipples (grease nipples aligned in a row) |
| Length | 1210 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Push pin |
| Power 1000 rpm | 74 kW |
| Power 540 rpm | 47 kW |
| Properties | CE marking available |
| Size code | G7 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 20100 g |
| Dimensions | 1400 × 150 × 150 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000144927
Bondioli&Pavesi Yoke, quick disconnect, 1-3/4"-20 spline, 8/G8/S8/H8 Bondioliand Pavesi 5730L3891
£410.40 excl.
£492.48 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000156849

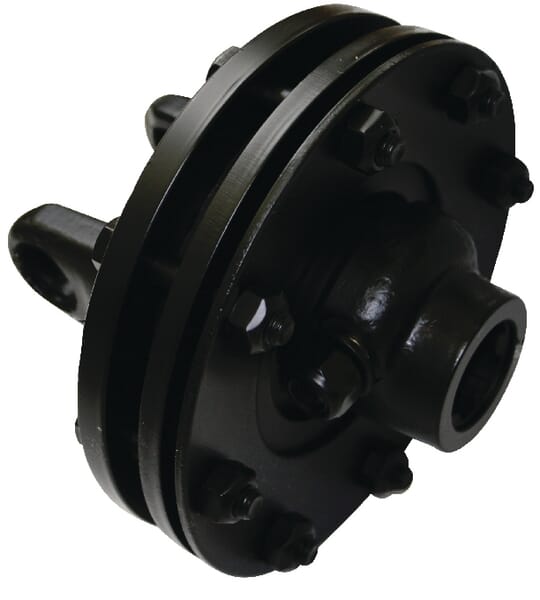

Bondioli&Pavesi Friction clutch FV34 H7/G7 1450Nm 661H53338R
£619.29 excl.
£743.15 incl.
In stock
Expected to ship on Friday 18 September
BPA000073316
Bondioli&Pavesi Pressure plate FNV 34 2481L0005
£49.71 excl.
£59.65 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000148253
Bondioli&Pavesi Protection complete GR. G 5CG2121FXSS
£101.43 excl.
£121.72 incl.
In stock
Expected to ship on Friday 18 September
BPA000148251

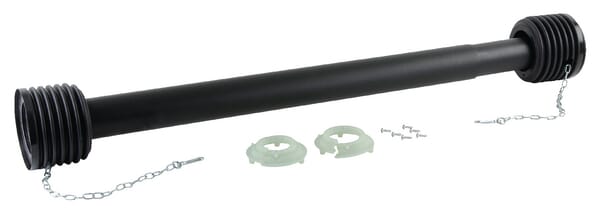

Bondioli&Pavesi Protection complete GR. G 5CG2086FXSS
