£532.40
excl. VAT
£638.88 incl. VAT
£638.88
incl. VAT
£532.40 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Crop sprayers, Slurry tankers, Manure spreader, Windrowers, Hay, Silo mill |
|---|---|
| Attachment machine side | Shear bolt clutch |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extended lubrication intervals of up to 50 hours, Simple maintenance, Extremely reliable, with a low power-to-weight ratio |
| Clutch type code | LB |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 91.4 mm |
| Cross joint length by tractor side | 91.4 mm |
| Details | PTO shaft with integrated shear pin clutch |
| Length | 1210 mm |
| Max. clutch torque | 2700 N·m |
| Power 1000 rpm | 74 kW |
| Power 540 rpm | 47 kW |
| Properties | Enhanced protection concept, Optimised intersection; needle bearings with double-lipped seal rings, Optimum access to all grease nipples, (grease nipples are all positioned along a single line) |
| Size code | G7 |
| Technical info | CE certification |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 25000 g |
| Dimensions | 1450 × 200 × 140 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000066904

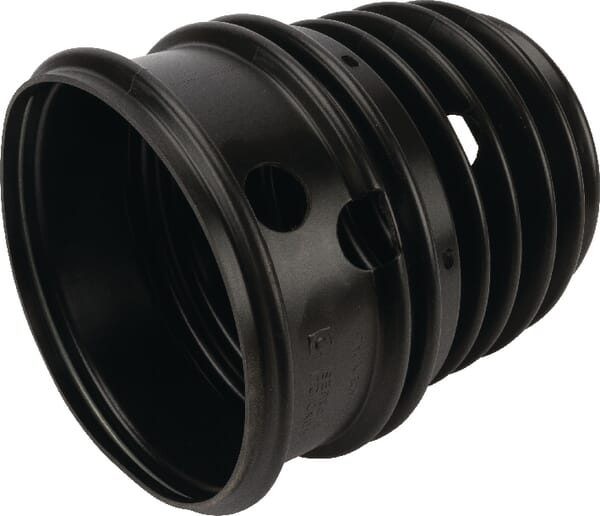

Bondioli&Pavesi Guard cone WW GLOBAL G4 219041401
£136.70 excl.
£164.04 incl.
In stock
Expected to ship on Monday 21 September
BPA000130239

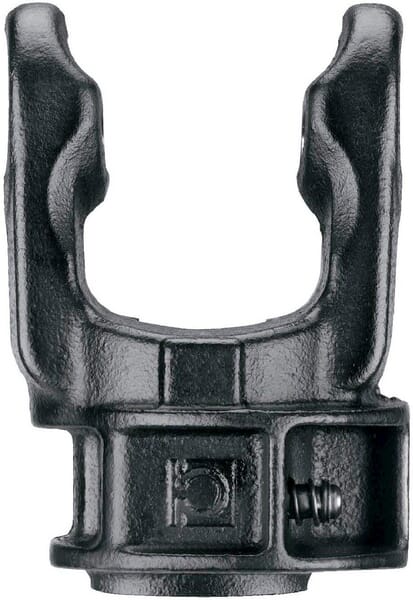

Bondioli&Pavesi Yoke, Quick disconnect, 1-3/8"-21 spline, 2/G2/S2 Bondioliand Pavesi 5070C3755
£80.19 excl.
£96.23 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000039394
Bondioli&Pavesi Profile tube inner triangular 4/G4 diameter in: 28 diameter out: 36x4mm L: 3m Bondioliand Pavesi 125073000R06
£261.17 excl.
£313.40 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000130585

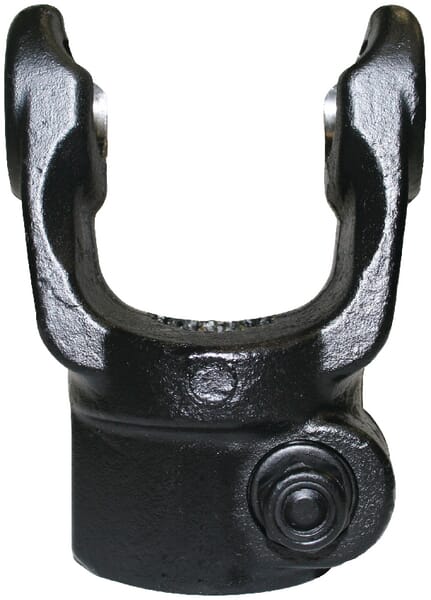

Bondioli&Pavesi Yoke, clamp bolt, 1-3/4"-20 spline, 6/G7/H7 Bondioliand Pavesi 5090H3860
£161.40 excl.
£193.68 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000162730

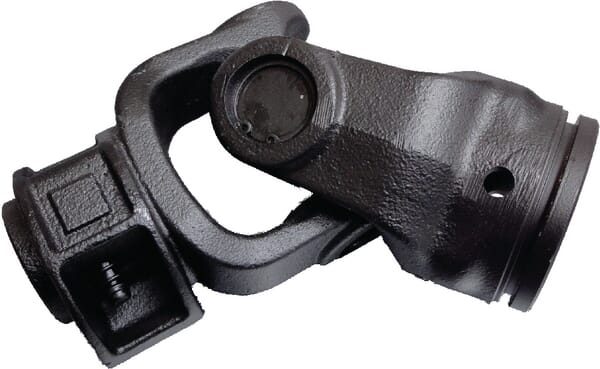

Bondioli&Pavesi Joint Size:1 outer 71G1049007
£120.84 excl.
£145.01 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000132577

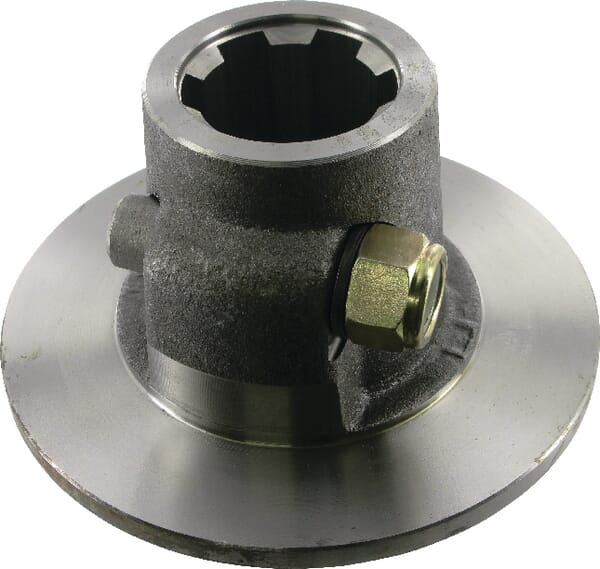

Bondioli&Pavesi Hub with taper pin FF4 1.3/4-6 515230411
