Product details
| Application range | Crop sprayers, Slurry tanks, Manure spreaders, Hay rakes, Tedders |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extremely reliable, with a low power-to-weight ratio, Extended lubrication intervals of up to 50 hours, Simple maintenance |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 91.5 mm |
| Cross joint length by tractor side | 91.5 mm |
| Details | Enhanced protection concept, Optimised cross journals with double lip seal, Optimally accessible grease nipples (grease nipples aligned in a row) |
| Length | 1810 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Push pin |
| Properties | CE marking available |
| Size code | G7 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 26000 g |
| Dimensions | 2008 × 155 × 155 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000148322
Bondioli&Pavesi Guard complete SH;S0 L=1610;S 5CSH161FXSS
£197.64 excl.
£237.17 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000179886

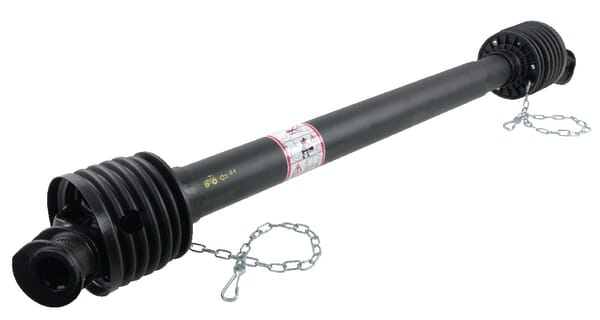

Bondioli&Pavesi PTO Shaft G8 L810mm 7G8N081CE007007
£460.02 excl.
£552.02 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000090253

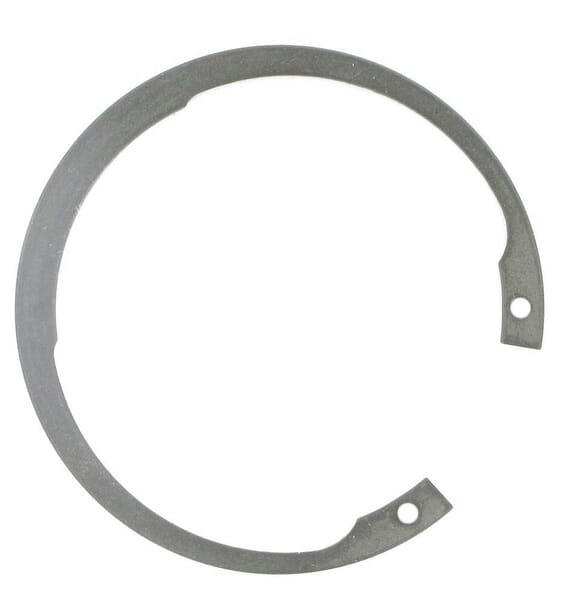

Bondioli&Pavesi Circlip Bondioliand Pavesi 338001064R20
£2.45 excl.
£2.94 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000148326
Bondioli&Pavesi Protection WW sz 652 1210mm complete 5F02121R1652FX
£142.64 excl.
£171.17 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000160447
Bondioli&Pavesi Coupling LR24 2500NM 1 3/4Z6 6WLE65004R
£1,226.91 excl.
£1,472.29 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000066923

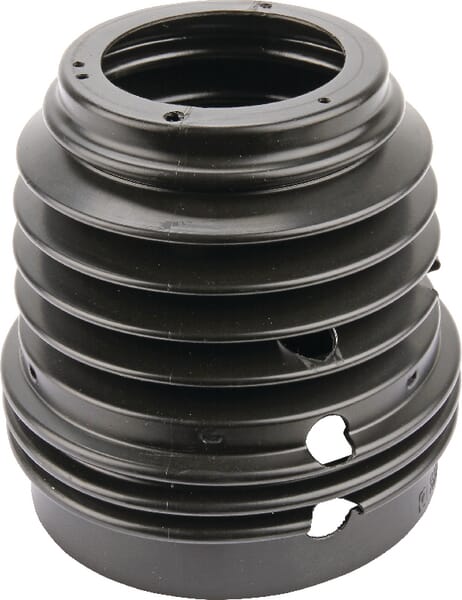

Bondioli&Pavesi Guard cone S6-H8 WW 50° 2190G0143
