£598.63
excl. VAT
£718.36 incl. VAT
£718.36
incl. VAT
£598.63 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September
Product details
| Application range | Crop sprayers, Slurry tankers, Manure spreader, Windrowers, Hay, Silo mill |
|---|---|
| Attachment machine side | Overrunning clutch |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extended lubrication intervals of up to 50 hours, Simple maintenance, Extremely reliable, with a low power-to-weight ratio |
| Clutch type code | RA2 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 91.4 mm |
| Cross joint length by tractor side | 91.4 mm |
| Details | PTO shaft with integrated freewheel |
| Length | 860 mm |
| Power 1000 rpm | 74 kW |
| Power 540 rpm | 47 kW |
| Properties | Enhanced protection concept, Optimised intersection; needle bearings with double-lipped seal rings, Optimum access to all grease nipples, (grease nipples are all positioned along a single line) |
| Size code | G7 |
| Technical info | CE certification |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 20000 g |
| Dimensions | 1115 × 250 × 250 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000248076

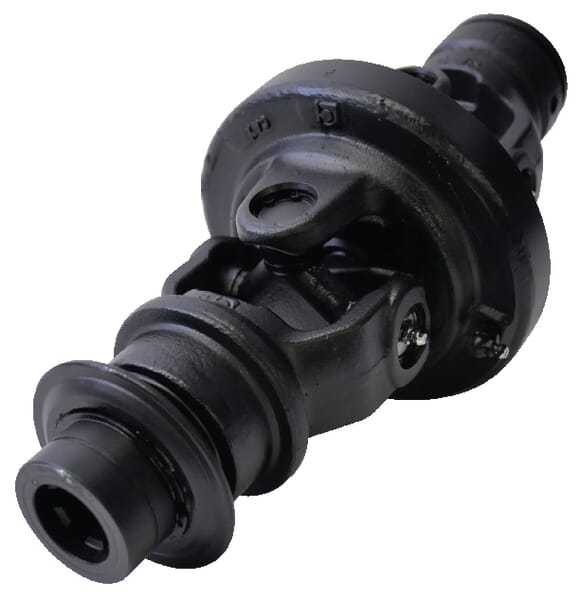

Bondioli&Pavesi Wide-angle joint S2 CS2GWW49WR7
£791.47 excl.
£949.76 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000179849
Bondioli&Pavesi PTO shaft G2 L: 1210mm, Bondioliand Pavesi 7G2N121CE007007
£317.58 excl.
£381.10 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000039561

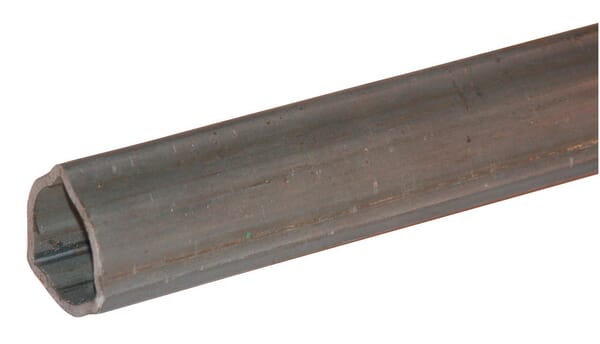

Bondioli&Pavesi Profile tube triangular 8/9 diameter in: 55 diameter out: 63x4mm L: 3m Bondioliand Pavesi 125223000R06
£406.28 excl.
£487.54 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144913

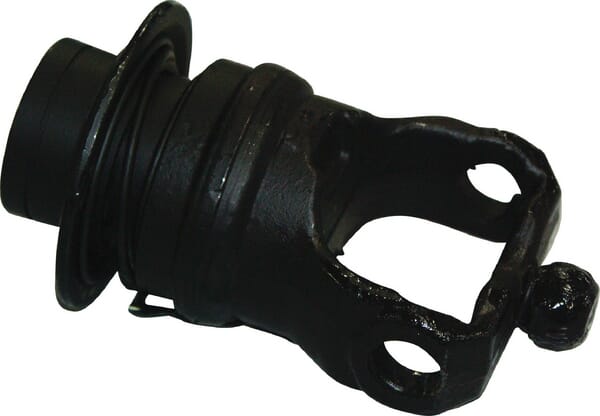

Bondioli&Pavesi Yoke, quick disconnect, 1-3/4"-6 spline, 6/G5/G7/S6/H7 Bondioliand Pavesi 5730G0491
£382.81 excl.
£459.37 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000039513
Bondioli&Pavesi Profile tube outer triangular size:4 diameter in: 37.3 diameter out: 43.5x3.1mm L: 1m wide angle Bondioliand Pavesi 125161000R06
£85.14 excl.
£102.17 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000179878

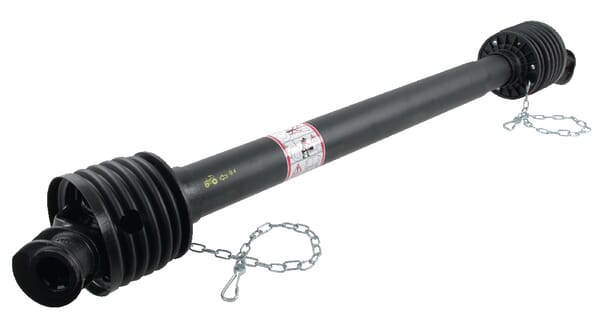

Bondioli&Pavesi PTO shaft G7 L: 1210mm, Bondioliand Pavesi 7G7N121CE007007
