£584.67
excl. VAT
£701.60 incl. VAT
£701.60
incl. VAT
£584.67 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Crop sprayers, Slurry tanks, Manure spreaders, Hay rakes, Tedders |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extremely reliable, with a low power-to-weight ratio, Extended lubrication intervals of up to 50 hours, Simple maintenance |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 34.9 mm |
| Cross joint bush diameter by tractor side | 34.9 mm |
| Cross joint length by machine side | 106 mm |
| Cross joint length by tractor side | 106 mm |
| Details | Enhanced protection concept, Optimised cross journals with double lip seal, Optimally accessible grease nipples (grease nipples aligned in a row) |

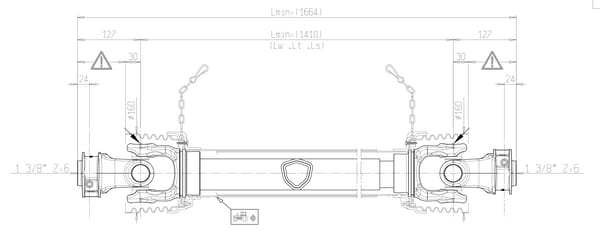

| Length | 1410 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Push pin |
| Properties | CE marking available |
| Size code | G9 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 29000 g |
| Dimensions | 1650 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000152545
Bondioli&Pavesi Shear bolt clutch G8/S8 3200Nm 6060L3808R
£226.62 excl.
£271.94 incl.
In stock
Expected to ship on Friday 18 September
BPA000101695
Bondioli&Pavesi Quick release pin 83,5mm 401000007R10
£6.05 excl.
£7.26 incl.
In stock
Expected to ship on Friday 18 September
BPA000115235

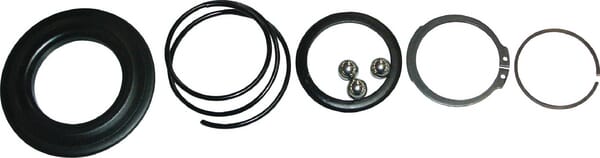

Bondioli&Pavesi Shaft collar kit 435000321R
£21.01 excl.
£25.21 incl.
In stock
Expected to ship on Friday 18 September
BPA000069006

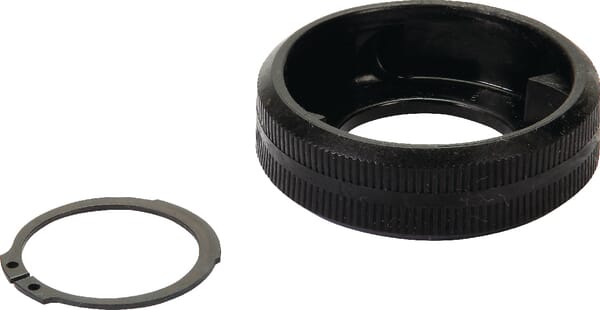

Bondioli&Pavesi Shaft collar kit with locking ring 240080061
£9.45 excl.
£11.34 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000072292

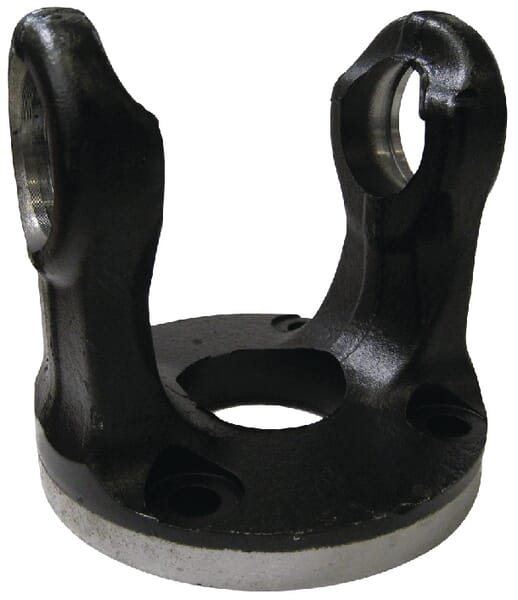

Bondioli&Pavesi Flange yoke - Size 8 - D195 221087252
£236.24 excl.
£283.49 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000068070

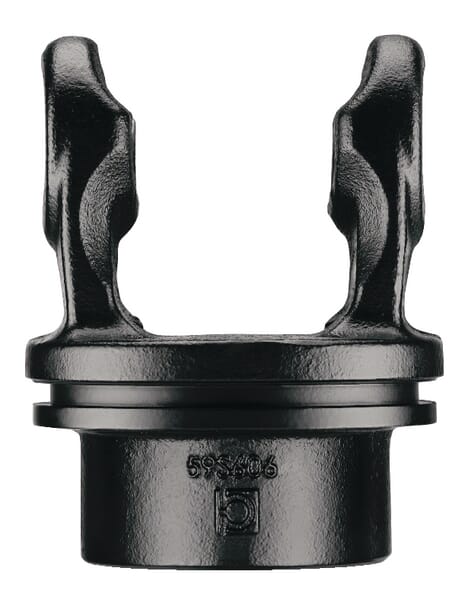

Bondioli&Pavesi Yoke, Profile tube, 46.9mm, S6 Bondioliand Pavesi 204S66854
