£638.44
excl. VAT
£766.13 incl. VAT
£766.13
incl. VAT
£638.44 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

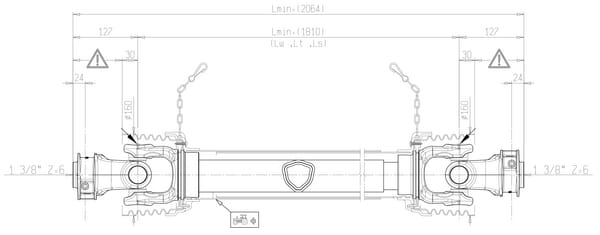

Product details
| Application range | Crop sprayers, Slurry tanks, Manure spreaders, Hay rakes, Tedders |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extremely reliable, with a low power-to-weight ratio, Extended lubrication intervals of up to 50 hours, Simple maintenance |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 34.9 mm |
| Cross joint bush diameter by tractor side | 34.9 mm |
| Cross joint length by machine side | 106 mm |
| Cross joint length by tractor side | 106 mm |
| Details | Enhanced protection concept, Optimised cross journals with double lip seal, Optimally accessible grease nipples (grease nipples aligned in a row) |
| Length | 1810 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Push pin |
| Properties | CE marking available |
| Size code | G9 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 33500 g |
| Dimensions | 2100 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000067910

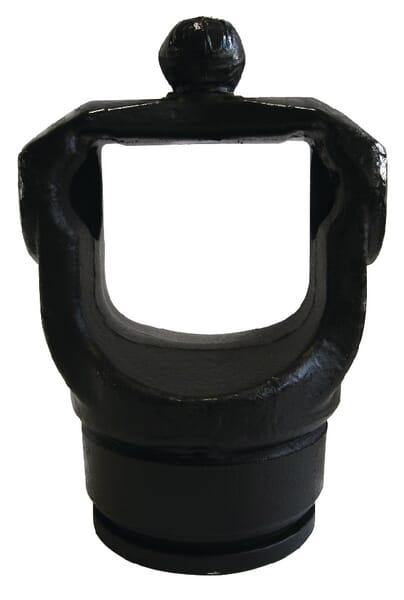

Bondioli&Pavesi Yoke, profile tube, 54mm, 6 Bondioliand Pavesi 2150G6893
£206.67 excl.
£248.00 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000192585
Bondioli&Pavesi Cardan shaft Global G2 8G2N121CE000001
£273.91 excl.
£328.69 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000066929
Bondioli&Pavesi Guard cone WW-80° sz S9/SH 2190N0122
£173.26 excl.
£207.91 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144920

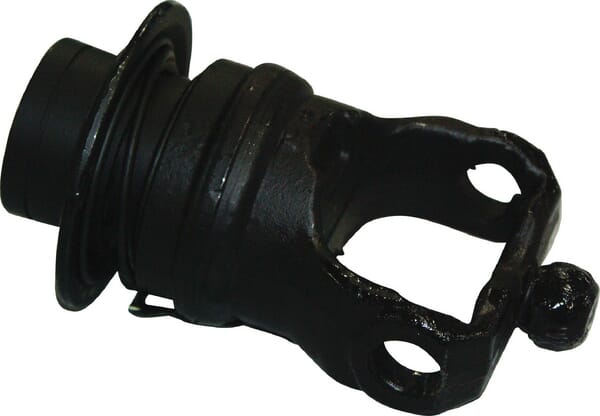

Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-6 spline, 8/G8/S8/H8 Bondioliand Pavesi 5730L0384
£305.65 excl.
£366.78 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000248127
Bondioli&Pavesi Wide angle PTO shaft S6 L: 1010mm, Bondioliand Pavesi CS6R101CEWR7007
£950.25 excl.
£1,140.30 incl.
In stock
Expected to ship on Monday 21 September
BPA000108868

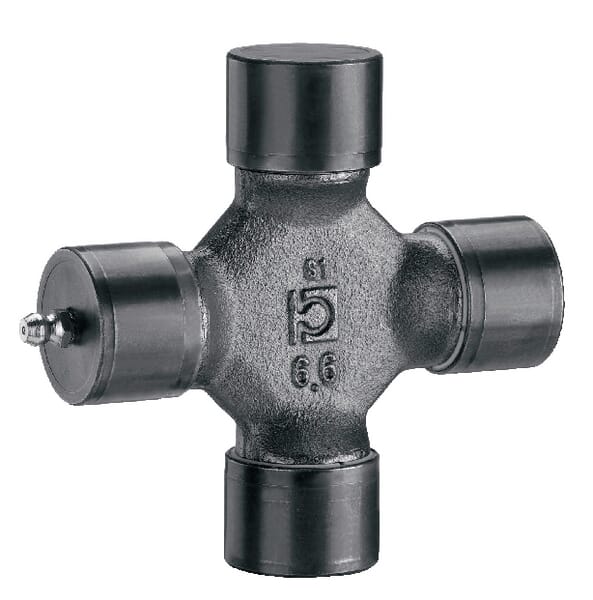

Bondioli&Pavesi Cross journal diameter 30.2x99.4mm G6 Bondioliand Pavesi 412060012R24
