£303.57
excl. VAT
£364.28 incl. VAT
£364.28
incl. VAT
£303.57 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Small crop sprayers, Small wood splitters, Tedders, Hay rakes |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 22 mm |
| Cross joint bush diameter by tractor side | 22 mm |
| Cross joint length by machine side | 54 mm |
| Cross joint length by tractor side | 54 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |
| Length | 860 mm |

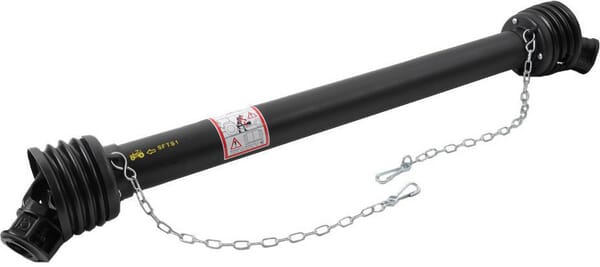

| Long description | PTO Drive Shafts - SFT, series S1 |
| Power 1000 rpm | 20 kW |
| Power 540 rpm | 13 kW |
| Properties | CE marking available |
| Size code | S1 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7530 g |
| Dimensions | 1200 × 140 × 140 mm |
| Dangerous goods | No |
