£372.62
excl. VAT
£447.14 incl. VAT
£447.14
incl. VAT
£372.62 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Slurry tank, Chemical fertiliser spreaders, Cutter bar, Small floor grinders, Seeders |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |

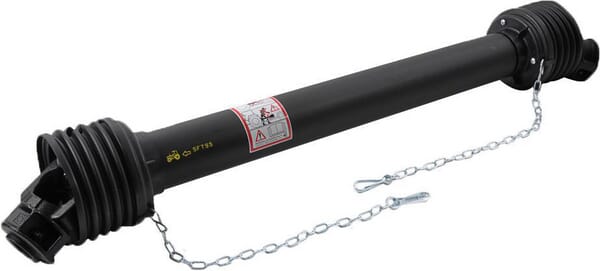

| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 79.4 mm |
| Cross joint length by tractor side | 79.4 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |

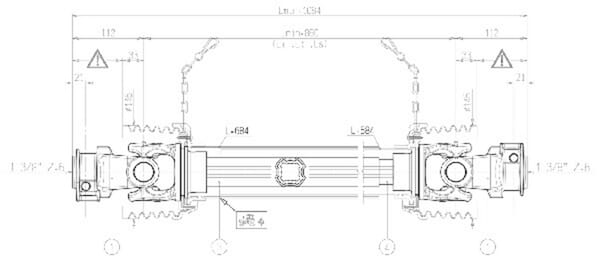

| Length | 860 mm |
| Power 1000 rpm | 55 kW |
| Power 540 rpm | 37 kW |
| Properties | CE marking available |
| Size code | S5 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 15200 g |
| Dimensions | 1100 × 155 × 155 mm |
| Dangerous goods | No |
You might also like
BPA000071694
Bondioli&Pavesi Inner guard tube 236821000
£55.87 excl.
£67.04 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000067914
Bondioli&Pavesi Yoke, profile tube, 66mm, S9 Bondioliand Pavesi 2150M6851
£302.45 excl.
£362.94 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000156974

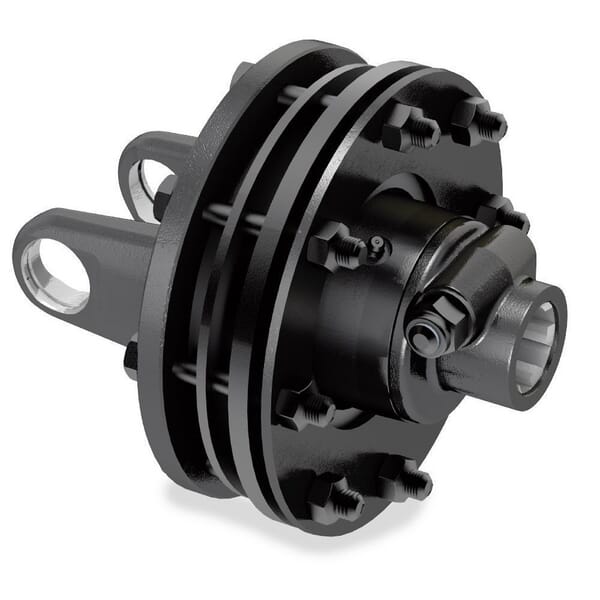

Bondioli&Pavesi Friction clutch FNV34 S5/S6/G5 1600Nm 665G56103R
