£367.19
excl. VAT
£440.63 incl. VAT
£440.63
incl. VAT
£367.19 excl. VAT
Free shipping
In stock
Expected to ship on Wednesday 23 September
Product details
| Application range | Loader wagons, Round balers, Harvesters, Mixing wagons, Toothed cutter bars |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |

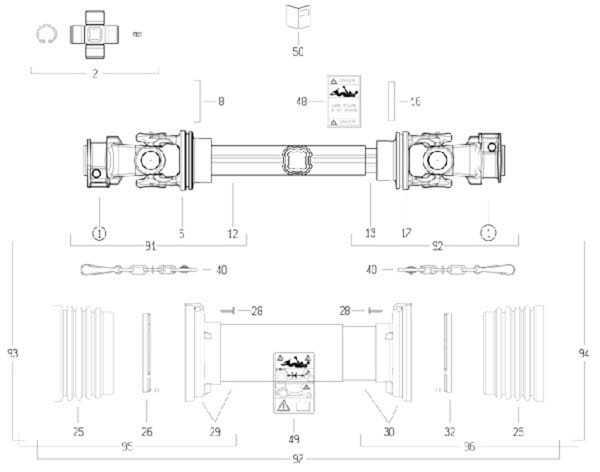

| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 79.4 mm |
| Cross joint length by tractor side | 79.4 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |

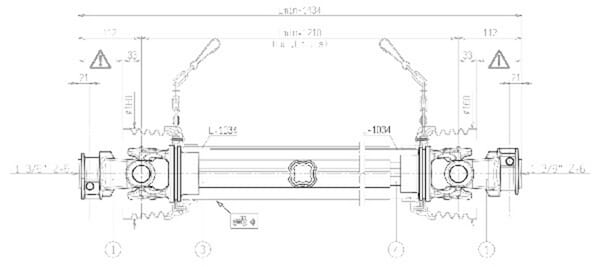

| Length | 1210 mm |

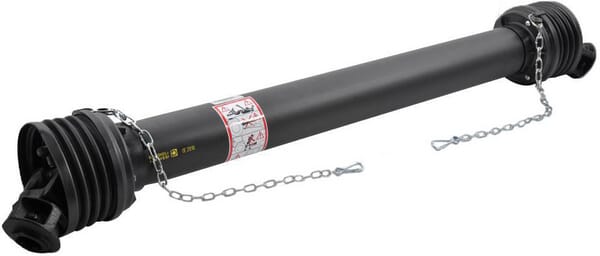

| Long description | PTO Drive Shafts - SFT, series S6 |
| Power 1000 rpm | 61 kW |
| Power 540 rpm | 40 kW |
| Properties | CE marking available |
| Size code | S6 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 30000 g |
| Dimensions | 1440 × 170 × 170 mm |
| Dangerous goods | No |
