£407.17
excl. VAT
£488.60 incl. VAT
£488.60
incl. VAT
£407.17 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Loader wagons, Round balers, Harvesters, Mixing wagons, Toothed cutter bars |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |

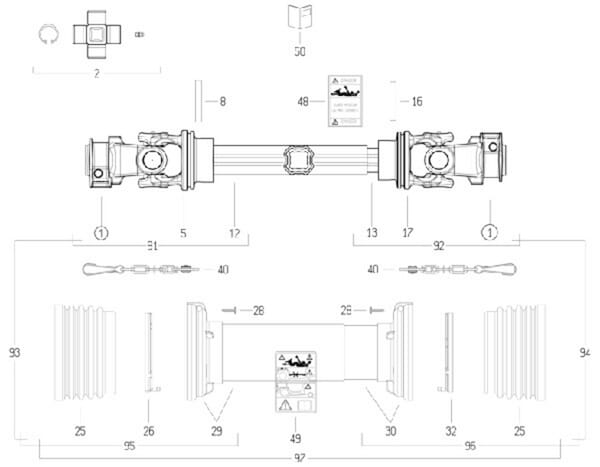

| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 79.4 mm |
| Cross joint length by tractor side | 79.4 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |

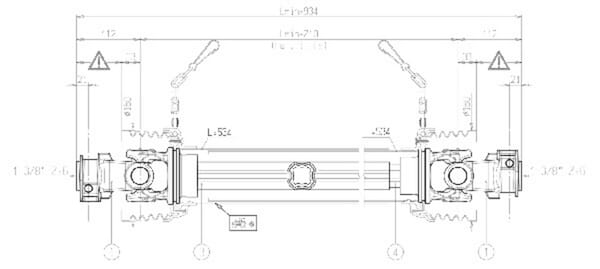

| Length | 710 mm |

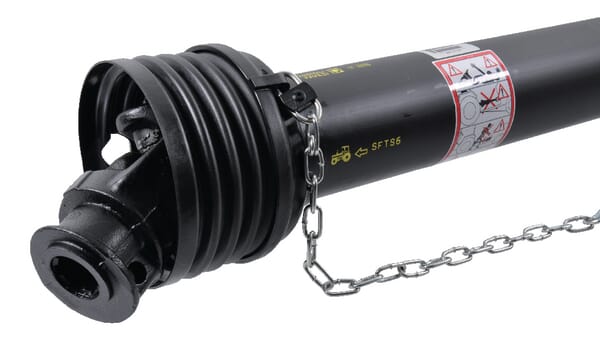

| Long description | PTO Drive Shafts - SFT, series S6 |
| Power 1000 rpm | 61 kW |
| Power 540 rpm | 40 kW |
| Properties | CE marking available |
| Size code | S6 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 15600 g |
| Dimensions | 960 × 180 × 180 mm |
| Dangerous goods | No |
You might also like
BPA000065867

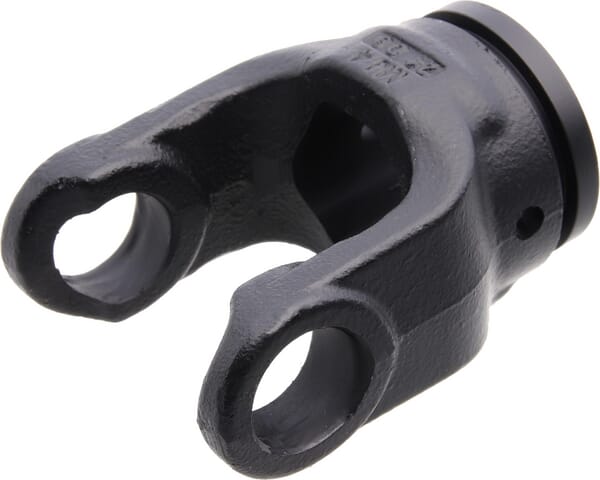

Bondioli&Pavesi Yoke, Profile tube, 43.5mm, 4 Bondioliand Pavesi 204046851
£63.08 excl.
£75.70 incl.
In stock
Expected to ship on Thursday 17 September
BPA000115015
Bondioli&Pavesi Bolt(Only) M10x75 432000114R08
£4.70 excl.
£5.64 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000151958

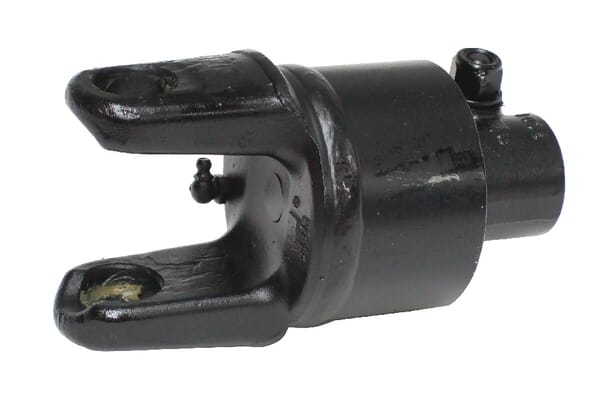

Bondioli&Pavesi Freewheel left RA2/S7/106 602206602R
£438.23 excl.
£525.88 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000250258

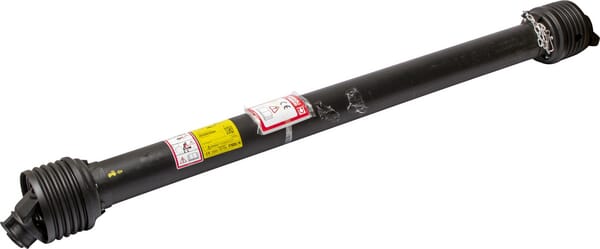

Bondioli&Pavesi PTO shaft S9 L: 1610mm, Bondioliand Pavesi DS9N161CE007003
£864.63 excl.
£1,037.56 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000250230

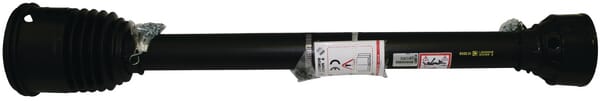

Bondioli&Pavesi PTO shaft Wide angle S4 DS4R086CEW00001
£698.50 excl.
£838.20 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000160441

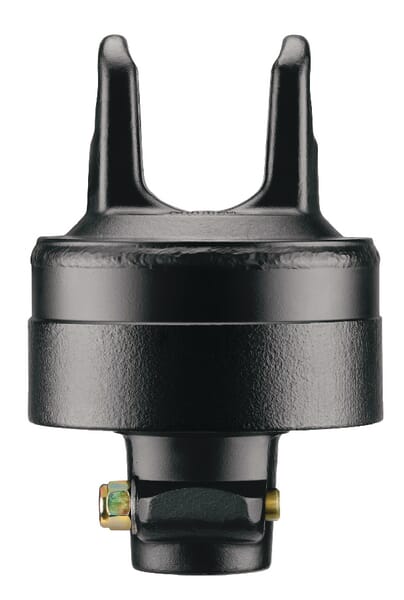

Bondioli&Pavesi Clutch LR23 G7/H7 2100Nm 6WH161901R
