£533.37
excl. VAT
£640.04 incl. VAT
£640.04
incl. VAT
£533.37 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Loader wagons, Round balers, Big baler, Loader wagons, Rotary tillers |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 34.9 mm |
| Cross joint bush diameter by tractor side | 34.9 mm |
| Cross joint length by machine side | 93.5 mm |
| Cross joint length by tractor side | 93.5 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |
| Length | 860 mm |
| Power 1000 rpm | 100 kW |
| Power 540 rpm | 66 kW |
| Properties | CE marking available |
| Size code | S8 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 21135 g |
| Dimensions | 1100 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000144907
Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-6 spline, 4/G4/S4 Bondioliand Pavesi 5730E0391
£281.96 excl.
£338.35 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000250237
Bondioli&Pavesi PTO shaft Wide angle S6 DS6R121CEW00001
£902.99 excl.
£1,083.59 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000039514

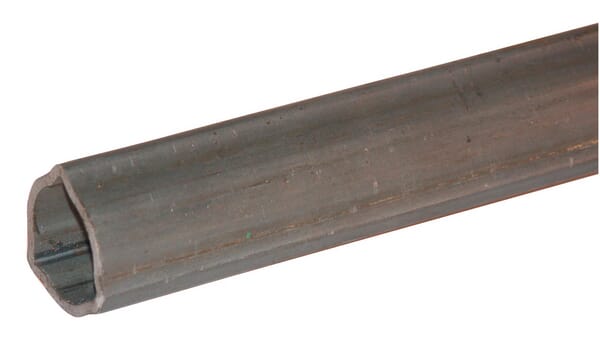

Bondioli&Pavesi Profile tube outer triangular size:4 diameter in: 37.3 diameter out: 43.5x3.1mm L: 3m wide angle Bondioliand Pavesi 125163000R06
£246.91 excl.
£296.29 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000069006
Bondioli&Pavesi Shaft collar kit with locking ring 240080061
£9.45 excl.
£11.34 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000148332
Bondioli&Pavesi Cpl protectionSZ.8 WA1 1210mm 5F08121W1FX
£238.45 excl.
£286.14 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000037407

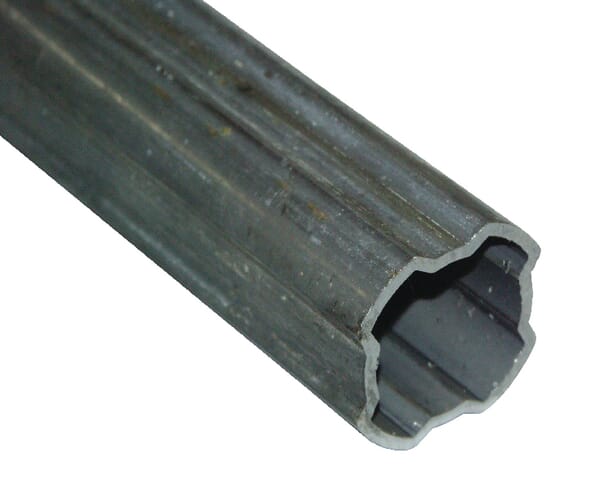

Bondioli&Pavesi Profile tube inner SFT S7 diameter in: 36.9 diameter out: 46.9x5mm L: 3m Bondioliand Pavesi 122563000R06
