Product details
| Application range | Big baler, Wood shredders, Loader wagons, Spreaders, Fertiliser mixer |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Connection outside diameter machine side inch and splines | 1.3/4-20 |
| Connection outside diameter tractor side inch and splines | 1.3/4-20 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 34.9 mm |
| Cross joint bush diameter by tractor side | 34.9 mm |
| Cross joint length by machine side | 106 mm |
| Cross joint length by tractor side | 106 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |
| Length | 610 mm |
| Long description | PTO Drive Shafts - SFT, series S9 |
| Properties | CE marking available |
| Size code | S9 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 27170 g |
| Dimensions | 900 × 180 × 180 mm |
| Dangerous goods | No |
You might also like
BPA000094978
Bondioli&Pavesi Plate Spring 180x100x3,75 367008860
£55.47 excl.
£66.56 incl.
In stock
Expected to ship on Friday 18 September
BPA000077361

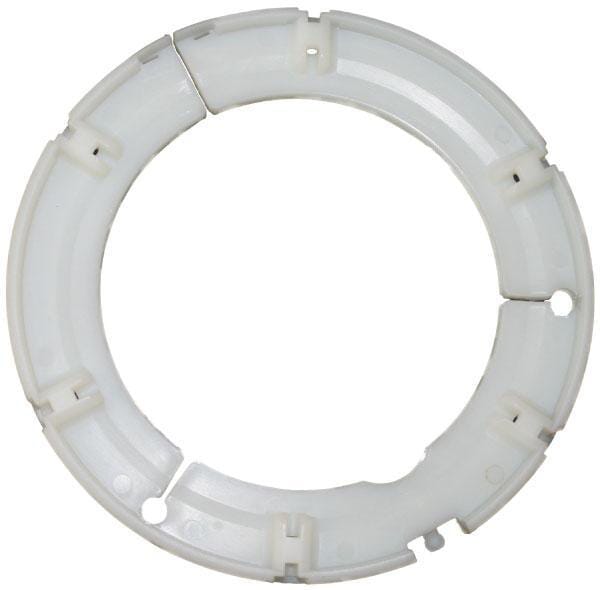

Bondioli&Pavesi Bearing ring SFT003-S6 WW50° 2550G0004R02
£23.24 excl.
£27.89 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000148322
Bondioli&Pavesi Guard complete SH;S0 L=1610;S 5CSH161FXSS
£197.64 excl.
£237.17 incl.
In stock
Expected to ship on Friday 18 September
BPA000077352
Bondioli&Pavesi Bearing ring 2550A0002R02
£19.80 excl.
£23.76 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000248092
Bondioli&Pavesi Wide-angle joint S6 CS4GWW49WR7
£807.04 excl.
£968.45 incl.
In stock
Expected to ship on Friday 18 September
BPA000148606

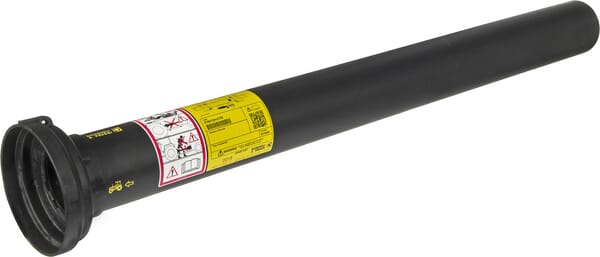

Bondioli&Pavesi Funnel outer 5TNN1S9121FR
