£498.96
excl. VAT
£598.75 incl. VAT
£598.75
incl. VAT
£498.96 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Tedders, Rakes, Silo spreaders |
|---|---|
| Benefits | Audible signal on overload, Pulsating power transmission in the event of slipping |
| Clutch type code | LN3 |
| Connection locking type | Collar lock |
| Details | If slipping through, the clutch begins to rattle, Limits the torque in the event of an overload |
| Direction of rotation | Right |
| Long description | Star ratchet / radial pin clutches, series LN-5 |
| Max. rotation speed | 700 r/min |
| Max static torque | 700 N·m |
| Original number equivalent | 60B3E3603R |
| Properties | 2 directions of rotation, Shocks and vibrations |
| Shaft size code | S4, G4 |
| Technical info | Force transmission using cam and springs |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5115 g |
| Dimensions | 200 × 110 × 110 mm |
| Dangerous goods | No |
You might also like
BPA000108890
Bondioli&Pavesi Cross journal diameter 30.2x106mm G8 / S8 / H8 Bondioliand Pavesi 4120L0051R20
£74.24 excl.
£89.09 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000130582

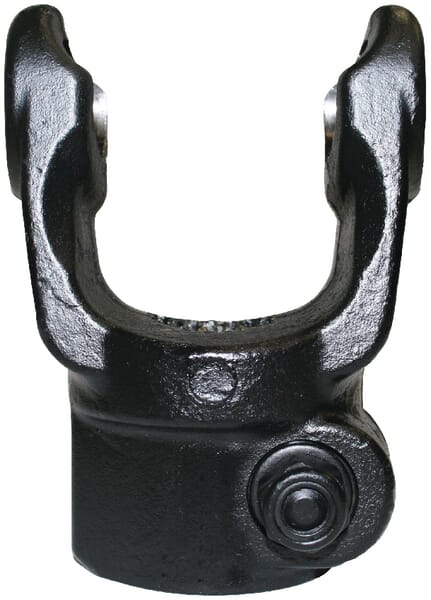

Bondioli&Pavesi Yoke, clamp bolt, 1-3/8"-6 spline, 6/G7/H7 Bondioliand Pavesi 5090H0360
£103.88 excl.
£124.66 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144796

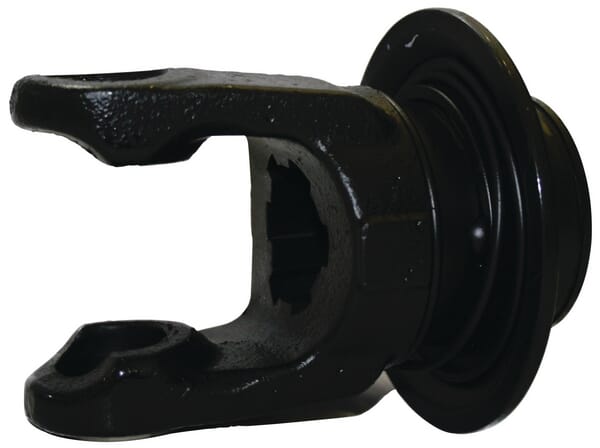

Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-6 spline, 7/G8/S8/H8 Bondioliand Pavesi 5720L0355
£152.33 excl.
£182.80 incl.
In stock
Expected to ship on Friday 18 September
BPA000071676
Bondioli&Pavesi Protection tube 236650694
£43.78 excl.
£52.54 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000150640

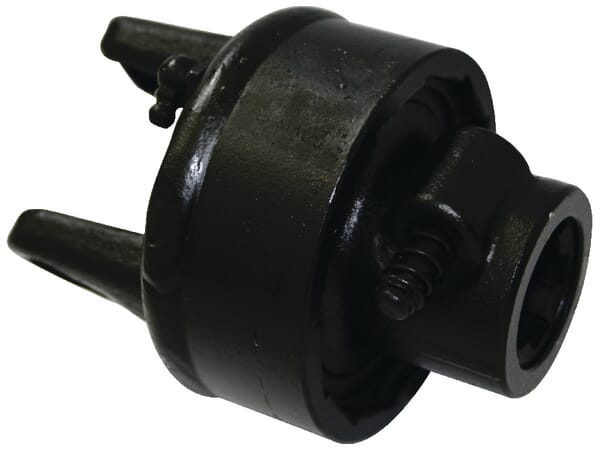

Bondioli&Pavesi Overrunning clutch RA1/S2/102 1-3/8z6 601102701R
