£580.82
excl. VAT
£696.98 incl. VAT
£696.98
incl. VAT
£580.82 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Tedders, Rakes, Silo spreaders |
|---|---|
| Benefits | Audible signal on overload, Pulsating power transmission in the event of slipping |
| Clutch type code | LN4 |
| Connection locking type | Collar lock |
| Details | If slipping through, the clutch begins to rattle, Limits the torque in the event of an overload |
| Direction of rotation | Right |

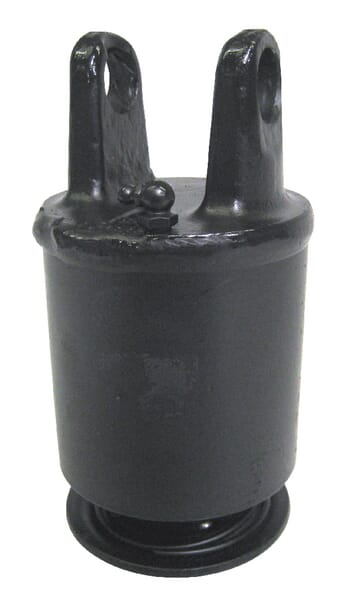

| Long description | Star ratchet / radial pin clutches, series LN-5 |
| Max. rotation speed | 700 r/min |
| Max static torque | 1000 N·m |
| Original number equivalent | 60B4E4403R |
| Properties | 2 directions of rotation, Shocks and vibrations |
| Shaft size code | S4, G4 |
| Technical info | Force transmission using cam and springs |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6000 g |
| Dimensions | 220 × 90 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000156846
Bondioli&Pavesi Friction clutch FV34 S5/S6/G5 1600Nm 661G56303R
£584.31 excl.
£701.17 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000069835

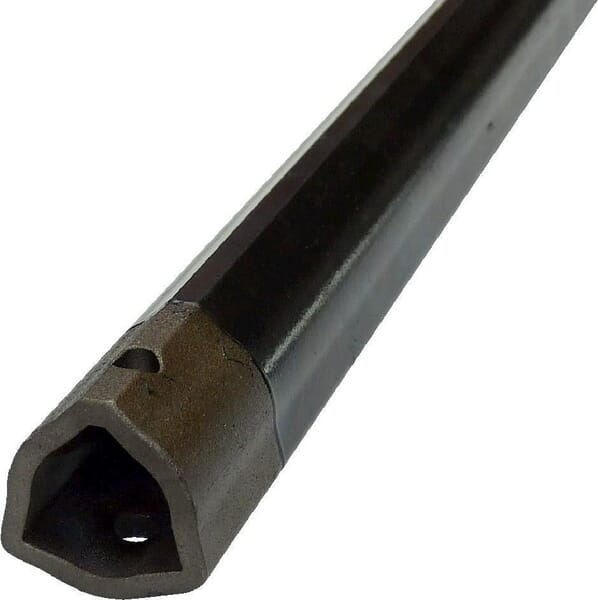

Bondioli&Pavesi Profile tube inner triangular size:6 diameter in: 36.6 diameter out: 45.6x4.5mm L: 1m Bondioliand Pavesi 245161000R06
£174.84 excl.
£209.81 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000067915

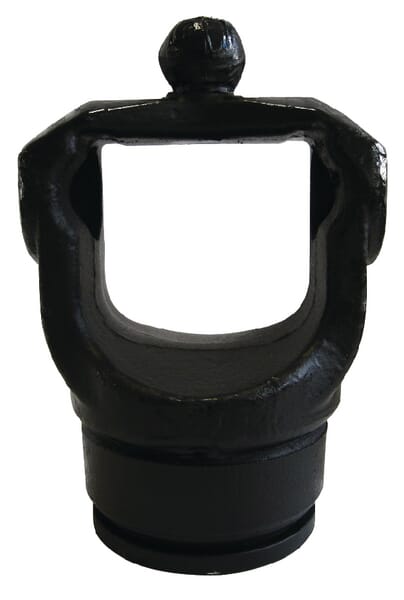

Bondioli&Pavesi Yoke, profile tube, 70.2mm, SH Bondioliand Pavesi 2150N6851
£386.51 excl.
£463.81 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000148285

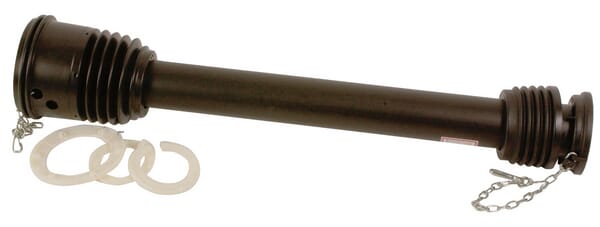

Bondioli&Pavesi PTO guard complete, L: 1210mm Bondioliand Pavesi 5CS2121FXWS
