£279.76
excl. VAT
£335.71 incl. VAT
£335.71
incl. VAT
£279.76 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Fertiliser pump, Shredder, Light balers |
|---|---|
| Benefits | Prevents against subsequent damage, Easy to start up |
| Clutch type code | LB |
| Connection outside diameter machine side inch and splines | 1.3/4-6 |
| Details | Drive fully disconnected, Repairable by replacing a shear bolt |
| Locking type by machine side | Clamp cone |
| Max static torque | 3100 N·m |
| Properties | Regardless of direction of rotation, Power transmission via shear bolts |
| Shaft size code | S8, H8, G8 |
| Share bolts circle radius | 78 |
| Share bolts thread diameter | M10 |
| Share bolts thread length | 65 |
| Shear bolts quality | 8.8 (steel) |
| Shear bolts thread pitch | 1.50 mm |
| Technical info | Protects against blockages and overload |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5322 g |
| Dimensions | 175 × 150 × 125 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000247135
Bondioli&Pavesi Wide angle PTO shaft SFT+ DEHR086CEW00003X
£3,381.19 excl.
£4,057.43 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000248130
Bondioli&Pavesi Wide angle PTO shaft S6 L 1210mm CS6R121CEWR01R3
£1,202.20 excl.
£1,442.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000084757

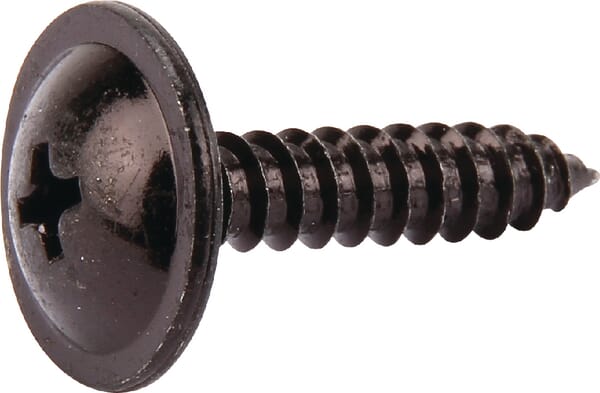

Bondioli&Pavesi Screw 4.8x22 D=15mm 310001428R30
