£471.88
excl. VAT
£566.26 incl. VAT
£566.26
incl. VAT
£471.88 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

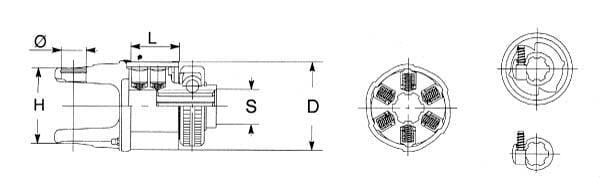

| Clutch type code | SA4 |
|---|---|
| Connection locking type | Collar lock |
| Cross cap diameter | 27 mm |
| Cross length | 74.6 mm |
| DOutside diameter | 96 mm |
| HMounting holes distance | 84 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 199 mm |
| Max static torque | 1600 N·m |
| Original number equivalent | 613456501R |
| Shaft size code | 4, S4, G4 |
| Suitable for machine/vehicle brand | n/a |
| Technical info | One-way ratchet torque limiters SA permit higher, settings compared to symmetrical units with, an equal number of ratchets. When rotated, opposite the normal working direction, oneway, ratchet torque limiters transmit only, 15% of the torque setting. |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5736 g |
| Dimensions | 220 × 100 × 95 mm |
| Dangerous goods | No |
