£904.79
excl. VAT
£1,085.75 incl. VAT
£1,085.75
incl. VAT
£904.79 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Manure spreader, Mixing wagon, Harvesters, Loader wagons, Round balers |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Benefits | Extended lubrication intervals of up to 50 hours, Simple maintenance, Extremely reliable, with a low power-to-weight ratio |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 91.4 mm |
| Cross joint length by tractor side | 100 mm |
| Length | 860 mm |
| Power 1000 rpm | 74 kW |
| Power 540 rpm | 47 kW |
| Properties | Enhanced protection concept, Optimised intersection; needle bearings with double-lipped seal rings, Optimum access to all grease nipples, (grease nipples are all positioned along a single line) |
| Size code | G7 |
| Technical info | CE certification |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 24000 g |
| Dimensions | 1250 × 230 × 230 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000156847
Bondioli&Pavesi Clutch FV34 1450Nm 661H53303R
£533.28 excl.
£639.94 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000152534
Bondioli&Pavesi Shear bolt clutch H7/G7 3100Nm 6060H0301R
£261.00 excl.
£313.20 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000250231
Bondioli&Pavesi PTO shaft Wide angle S4 DS4R121CEW00001
£754.97 excl.
£905.96 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000065887
Bondioli&Pavesi Yoke, Profile tube, 40mm -14 spline, 8 Bondioliand Pavesi 204083460
£127.63 excl.
£153.16 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000144911
Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-6 spline, 6/G5/G7/S6/H7 Bondioliand Pavesi 5730G0391
£305.37 excl.
£366.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000108885

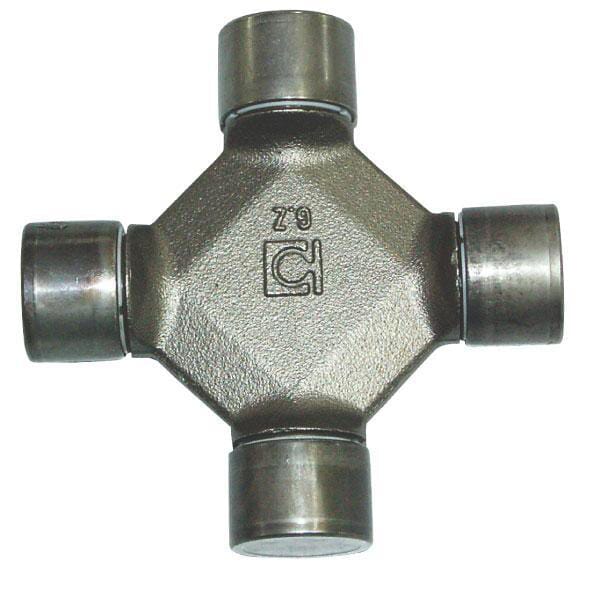

Bondioli&Pavesi Cross journal diameter 30.2x79.4mm 5 Bondioliand Pavesi 4120G0006R30
