£1,444.58
excl. VAT
£1,733.50 incl. VAT
£1,733.50
incl. VAT
£1,444.58 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Manure spreader, Mixing wagons, Harvesters, Loader wagons, Round balers |
|---|---|
| Attachment machine side | Shear bolt clutch |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-21 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 79.4 mm |
| Cross joint length by tractor side | 100 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |
| Includes | Low shear resistance, Less wear, Highly durable, Declaration of conformity |
| Length | 1210 mm |
| Long description | PTO shafts - wide-angle 80° tractor side SFT, Series S2 suitable for manure spreaders, feed mixers, harvesters, loader wagons, round balers etc. |
| Product details | PTO shaft with guard, User instructions, Lubrication intervals of up to 50 hours, Provided with "CE" marking, Observe Bondioli & Pavesi user instructions, Power values at bending angle 5° and service life 1000 hours |
| Properties | CE marking available |
| Pros | Low shear resistance, Less wear, Highly durable, Square profile tube for maximum torsion rigidity, Torque is distributed evenly over the wide contact surfaces |
| Size code | S6 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 31000 g |
| Dimensions | 1600 × 150 × 150 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000248131

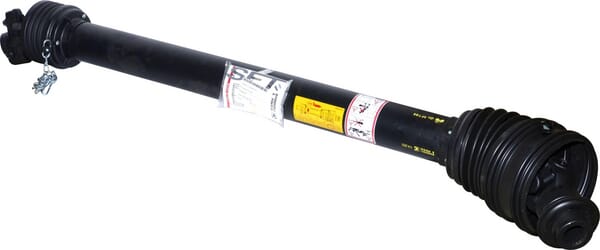

Bondioli&Pavesi Wide angle PTO shaft S6 L 1210mm CS6R121CEWR01R7
£1,482.88 excl.
£1,779.46 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000248136
Bondioli&Pavesi Wide angle PTO shaft S6 L 1210mm CS6R121CEWR8007
£1,260.66 excl.
£1,512.80 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000248138

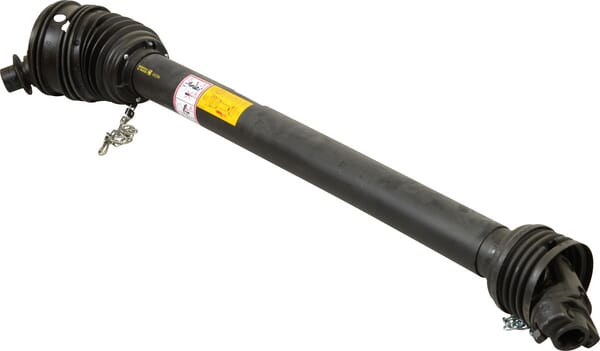

Bondioli&Pavesi Wide angle PTO shaft S6 L 1210mm CS6R121CEWR81R7
