£1,562.30
excl. VAT
£1,874.76 incl. VAT
£1,874.76
incl. VAT
£1,562.30 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Manure spreader, Mixing wagons, Harvesters, Loader wagons, Round balers |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Connection outside diameter machine side inch and splines | 1.3/4-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-21 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 34.9 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 93.5 mm |
| Cross joint length by tractor side | 106 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |
| Includes | Low shear resistance, Less wear, Highly durable, Declaration of conformity |
| Length | 810 mm |
| Long description | PTO shafts - wide-angle 80° tractor side SFT, Series S2 suitable for manure spreaders, feed mixers, harvesters, loader wagons, round balers etc. |
| Product details | PTO shaft with guard, User instructions, Lubrication intervals of up to 50 hours, Provided with "CE" marking, Observe Bondioli & Pavesi user instructions, Power values at bending angle 5° and service life 1000 hours |
| Properties | CE marking available |
| Pros | Low shear resistance, Less wear, Highly durable, Square profile tube for maximum torsion rigidity, Torque is distributed evenly over the wide contact surfaces |
| Size code | S8 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
Free shipping
BPA000248156
Bondioli&Pavesi Wide angle PTO shaft S8 L 810mm CS8R081CEWR7016T
£1,547.90 excl.
£1,857.48 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000248158
Bondioli&Pavesi Wide angle PTO shaft S8 L 810mm CS8R081CEWS0016T
£1,684.12 excl.
£2,020.94 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000108886
Bondioli&Pavesi Cross journal diameter 30.2x79.4mm 5 / Bondioliand Pavesi 4120G0012R40
£58.52 excl.
£70.22 incl.
In stock
Expected to ship on Friday 18 September
BPA000072988
Bondioli&Pavesi Seal ring for FN22 (old) 246000024R02
£12.03 excl.
£14.44 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000039450
Bondioli&Pavesi Profile tube triangular 6/7/G7 diameter in: 46 diameter out: 54x4mm L: 3m Bondioliand Pavesi 125123000R06
£347.72 excl.
£417.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000076983

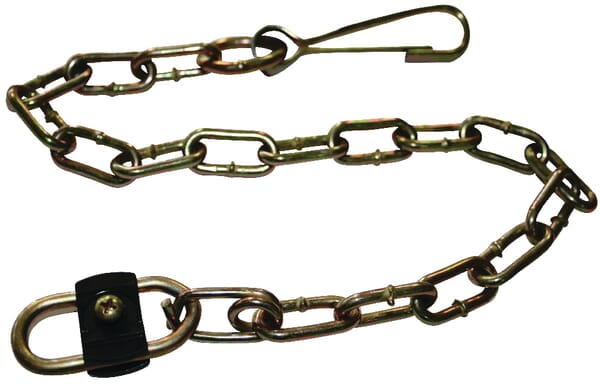

Bondioli&Pavesi Guard safety chain S6 to S0 252000101R02
