£168.84
excl. VAT
£202.61 incl. VAT
£202.61
incl. VAT
£168.84 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Rotary tillers, Shredder, Wood shredders, Stump grinding |
|---|---|
| Benefits | Assembly with no play, Clamping pin is not loaded for stretching |
| Consists of | Fork, Conical clamping pin |
| Cross connection diameter | 34.9 mm |
| Cross length | 106 mm |
| Details | Conical pin provides good clamping effect, Housing without slot |
| DLocking bolt to connection end distance | 31 mm |
| Inside connection diamter inch and splines | 1.3/4-20 |
| Locking bolt to cross bush center distance | 124 mm |
| Locking system | Clamp bolt (interfering) |
| Long description | Clamp-on yokes splined, series SH |
| Outside connection diameter | 34.9 mm |
| Product details | Do not use yoke on tractor side with machines produced after 2005 according to safety standard EN12965, Conical screw ensures good hold, Housing without saw cut |
| Properties | Clamp cone bolt |
| Pros | Slack-free installation, Clamp bolt is not stretched under load |
| Shaft size code | 8, S9 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3324 g |
| Dimensions | 165 × 120 × 85 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000144805
Bondioli&Pavesi Yoke, quick disconnect, 1-3/4"-20 spline, 8/S9 Bondioliand Pavesi 5720M3855
£188.49 excl.
£226.19 incl.
In stock
Expected to ship on Friday 18 September
BPA000068067
Bondioli&Pavesi Yoke, profile tube, 50.2mm, S5 Bondioliand Pavesi 204S56858
£77.98 excl.
£93.58 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000152909
Bondioli&Pavesi Ratchet clutch LN2 S1/G1 460Nm 60A2B2603R
£403.73 excl.
£484.48 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000150651
Bondioli&Pavesi Overrunning clutch RA1 S4/G4 601104702R
£399.01 excl.
£478.81 incl.
In stock
Expected to ship on Friday 18 September

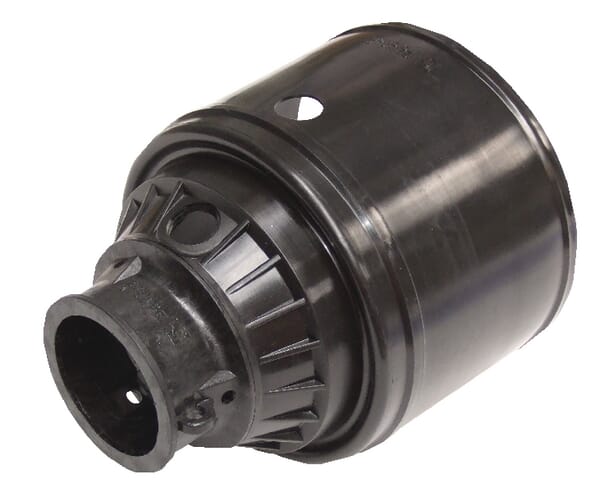

BPA000133334
