£124.83
excl. VAT
£149.80 incl. VAT
£149.80
incl. VAT
£124.83 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Rotary tillers, Shredder, Wood shredders, Stump grinding |
|---|---|
| Benefits | Assembly with no play, Clamping pin is not loaded for stretching |
| Consists of | Fork, Conical clamping pin |
| Cross connection diameter | 34.9 mm |
| Cross length | 106 mm |
| Details | Conical pin provides good clamping effect, Housing without slot |
| DLocking bolt to connection end distance | 31 mm |
| Inside connection diamter inch and splines | 1.3/4-6 |
| Locking bolt to cross bush center distance | 124 mm |
| Locking system | Clamp bolt (interfering) |
| Long description | Clamp-on yokes splined, series SH |
| Outside connection diameter | 34.9 mm |
| Product details | Do not use yoke on tractor side with machines produced after 2005 according to safety standard EN12965, Conical screw ensures good hold, Housing without saw cut |
| Properties | Clamp cone bolt |
| Pros | Slack-free installation, Clamp bolt is not stretched under load |
| Shaft size code | 8, S9 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3385 g |
| Dimensions | 170 × 120 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000179853
Bondioli&Pavesi Driveshaft with overrunning clutch 7G4N101CE007096
£454.54 excl.
£545.45 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000160431

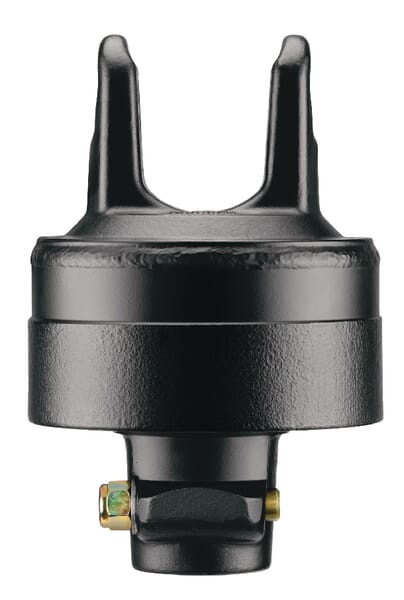

Bondioli&Pavesi Clutch LR23 S4/G4 1200Nm 6WE148003R
£1,259.94 excl.
£1,511.93 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000115239

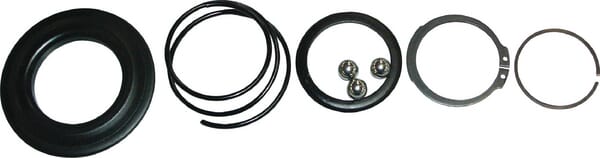

Bondioli&Pavesi Shaft collar kit 435000418R
£29.60 excl.
£35.52 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000101701
Bondioli&Pavesi Quick release pin 94,5mm 401000037R10
£5.91 excl.
£7.09 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000077369

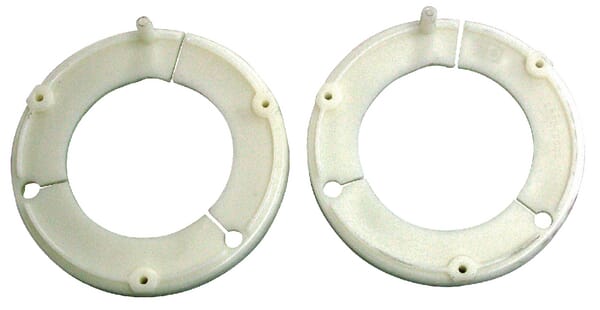

Bondioli&Pavesi Ring SFT-S0/SH D146 2550M0002R02
£27.01 excl.
£32.41 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000109318

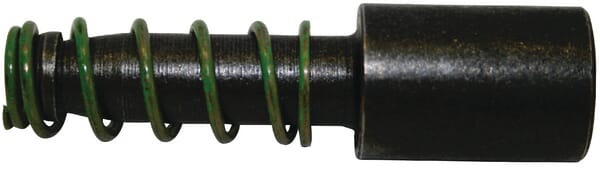

Bondioli&Pavesi Quick release pin 47.0mm 403000001R10
£5.22 excl.
£6.26 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000051957
Kramp Oil seal 16x28x7mm type:CC Viton Stainless steel DIN 3760 1x 16287CCVP001
£10.40 excl.
£12.48 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000096602
Kramp Oil seal 36x54x7.5mm type:CB Viton Stainless steel DIN 3760 1x 365475CBVP001
£12.25 excl.
£14.70 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000011346

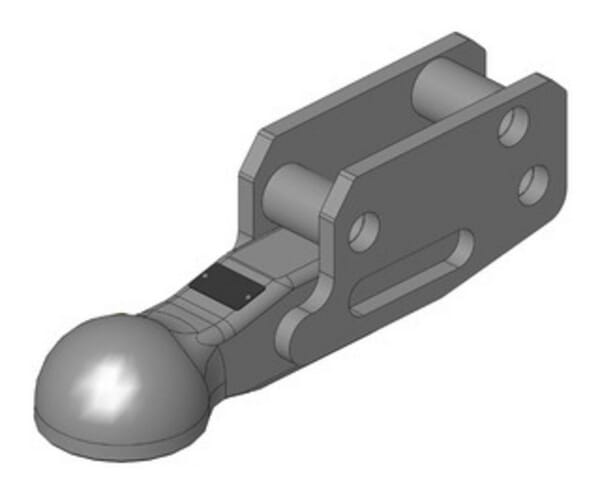

Scharmüller Towing Eye K80® Krone Titan, XL, XXL Ladewagen f. Obenanhängung 00647300A02
