£149.77
excl. VAT
£179.72 incl. VAT
£179.72
incl. VAT
£149.77 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Rotary tillers, Shredder, Wood shredders, Stump grinding |
|---|---|
| Benefits | Assembly with no play, Clamping pin is not loaded for stretching |
| Consists of | Fork, Conical clamping pin |
| Cross connection diameter | 30.2 mm |
| Cross length | 79.4 mm |
| Details | Conical pin provides good clamping effect, Housing without slot |
| DLocking bolt to connection end distance | 24 mm |
| Inside connection diamter inch and splines | 1.3/4-6 |
| Locking bolt to cross bush center distance | 124 mm |
| Locking system | Clamp bolt (interfering) |
| Long description | Clamp-on yokes splined, series SH |
| Outside connection diameter | 30.2 mm |
| Product details | Do not use yoke on tractor side with machines produced after 2005 according to safety standard EN12965, Conical screw ensures good hold, Housing without saw cut |
| Properties | Clamp cone bolt |
| Pros | Slack-free installation, Clamp bolt is not stretched under load |
| Shaft size code | S5, S6, G5, 5 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2104 g |
| Dimensions | 143 × 91 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000144818
Bondioli&Pavesi Yoke, Quick disconnect, 1-3/4"-6 spline, 10 Bondioliand Pavesi 572100451
£229.39 excl.
£275.27 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000065896

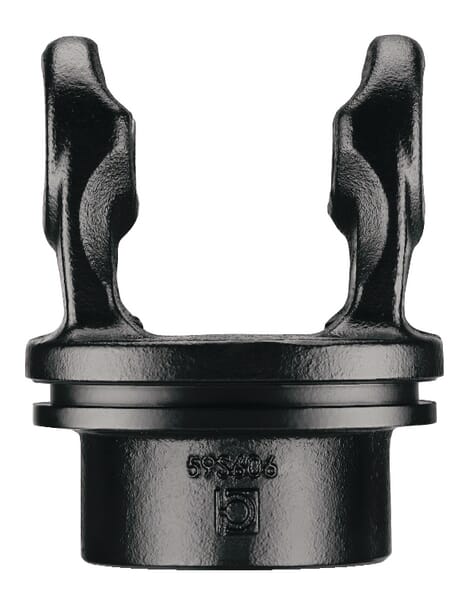

Bondioli&Pavesi Yoke, profile tube, 66mm, H8 Bondioliand Pavesi 2040L6869
