£112.06
excl. VAT
£134.47 incl. VAT
£134.47
incl. VAT
£112.06 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

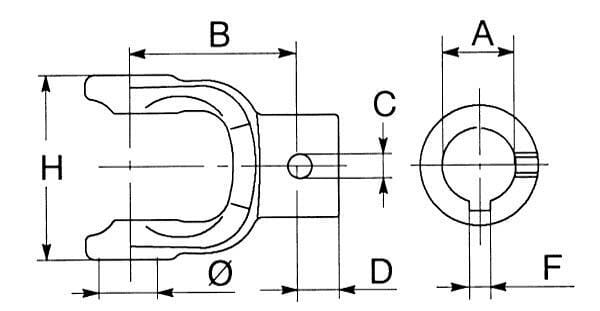

| Bolt thread diameter | M12 |
|---|---|
| Cross connection diameter | 27 mm |
| DLocking bolt to connection end distance | 20 mm |
| FKey width | 8 mm |
| Locking bolt to cross bush center distance | 80 mm |
| Locking system | Threaded hole |
| Long description | Plain bored yoke with keyway and tapped hole series 1 |
| Outside connection diameter | 30 mm |
| Properties | Bores have tolerance H8 |
| Shaft size code | 43, G3, G4, S4 |
| Type | Hub |
| Unit | Each |
| Width | 90 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1125 g |
| Dimensions | 172 × 90 × 70 mm |
| Dangerous goods | No |
