£175.14
excl. VAT
£210.17 incl. VAT
£210.17
incl. VAT
£175.14 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Various (agricultural) applications |
|---|---|

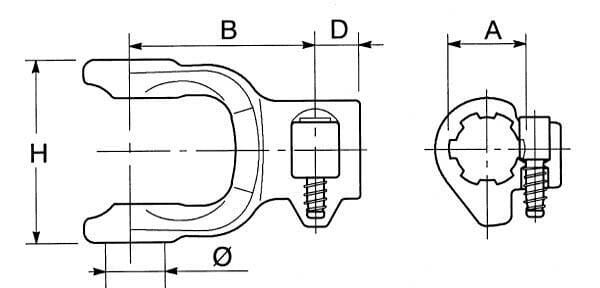

| BLocking bolt to cross bush center distance | 55 mm |
| DLocking bolt to connection end distance | 20 mm |
| HWidth | 63.5 mm |
| Inside connection diamter inch and splines | 1.1/8-6 |
| Locking system | Push pin |
| Long description | Quick-disconnect yokes old series 3 |
| ØCross connection diameter | 22 mm |
| Outside connection diameter | 28.5 mm |
| Shaft size code | 1, G1, S1 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Quick disconnect |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 551 g |
| Dimensions | 118 × 76 × 70 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000248164
Bondioli&Pavesi Wide angle PTO shaft S8 L 1210m CS8R121CEWS01R4
£1,781.05 excl.
£2,137.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000101694
Bondioli&Pavesi Quick release pin kit 79,5mm 401000006R10
£9.68 excl.
£11.62 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000247134
Bondioli&Pavesi Wide angle PTO shaft SFT+ DEHR086CEW00002X
£3,729.94 excl.
£4,475.93 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000071701

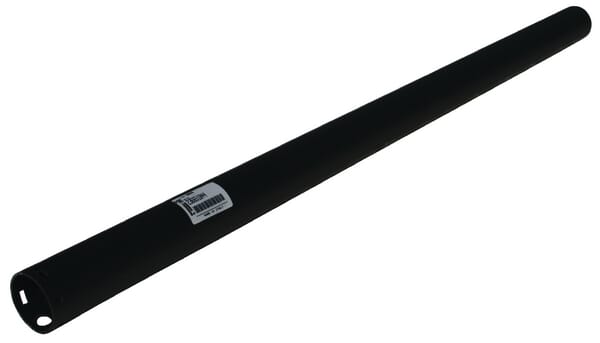

Bondioli&Pavesi Outer guard tube 236850602
£58.07 excl.
£69.68 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000152534

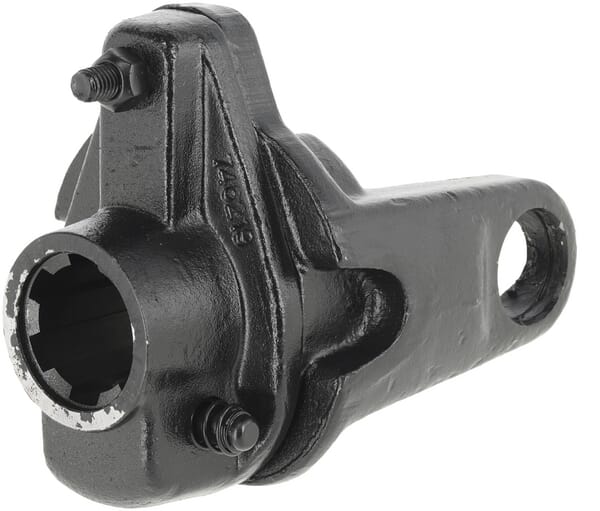

Bondioli&Pavesi Shear bolt clutch H7/G7 3100Nm 6060H0301R
