£31.39
excl. VAT
£37.67 incl. VAT
£37.67
incl. VAT
£31.39 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Various (agricultural) applications |
|---|---|
| Benefits | Can also be used on pulling side |

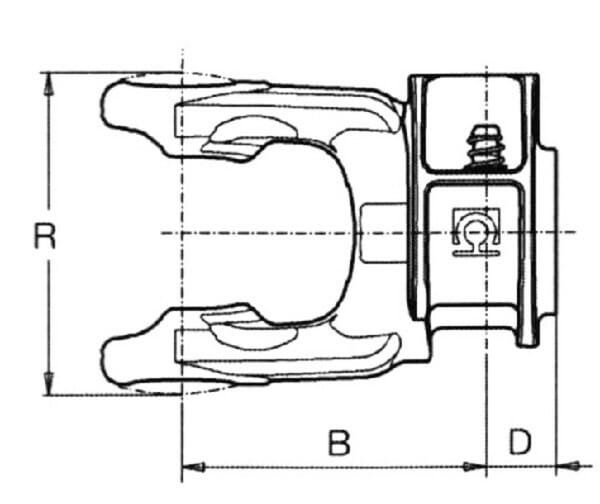

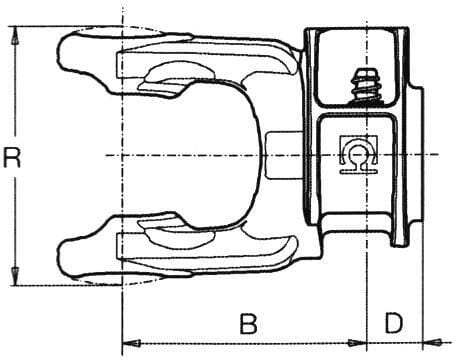

| Cross connection diameter | 22 mm |
| Details | Deep lying slide pin |
| DLocking bolt to connection end distance | 18 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Locking bolt to cross bush center distance | 75 mm |
| Locking system | Push pin |
| Outside connection diameter | 22 mm |
| Shaft size code | 1, G1, S1 |
| Type | Quick disconnect |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 845 g |
| Dimensions | 110 × 70 × 65 mm |
| Dangerous goods | No |
