£430.11
excl. VAT
£516.13 incl. VAT
£516.13
incl. VAT
£430.11 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Various (agricultural) applications |
|---|---|
| Cross cap diameter | 30.2 mm |
| Cross length | 106 mm |
| DLocking bolt to connection end distance | 38 mm |
| Inside connection diameter | 32 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Locking bolt to cross bush center distance | 123 mm |
| Locking system | Collar lock |
| Long description | Wide-angle yokes with quick lock 80° SFT Series |
| Outside connection diameter | 38 mm |

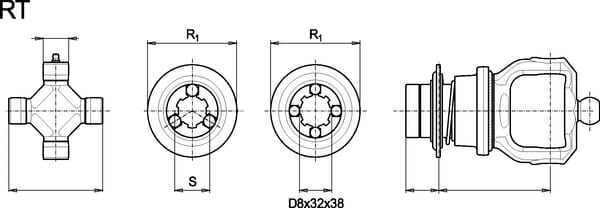

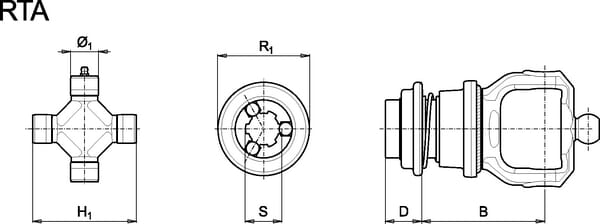

| Product details | Various (agricultural) applications, Metal collar connection, RT model without stopper, RTA model with stopper |
| Properties | Metal collar clip |
| Pros | Various (agricultural) applications |
| Shaft size code | 8 |
| Technical info | 2w |
| Type | Quick disconnect |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3907 g |
| Dimensions | 220 × 115 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000248096

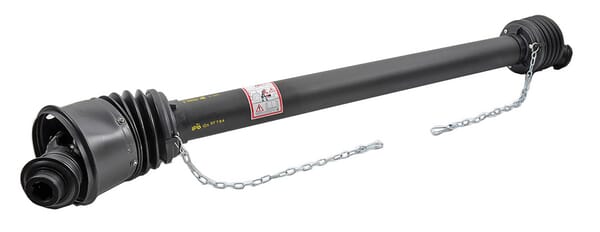

Bondioli&Pavesi Wide angle PTO shaft S4 L: 860mm, Bondioliand Pavesi CS4R086CEWR7007
£769.22 excl.
£923.07 incl.
In stock
Expected to ship on Friday 18 September
BPA000070317

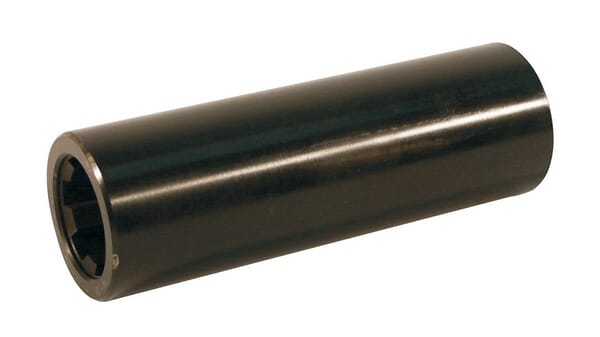

Bondioli&Pavesi Splined. hub, 1-3/8" (6), 160mm 226000312
£74.31 excl.
£89.17 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000037170

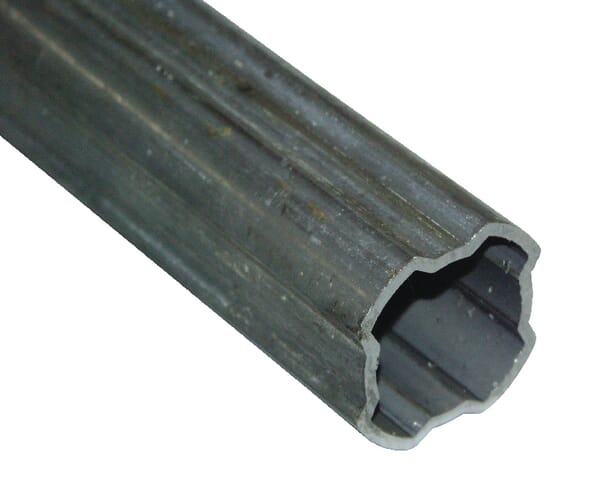

Bondioli&Pavesi Profile tube outer SFT S4/S5 diameter in: 44.7 diameter out: 50.2x2.8mm L: 3m Bondioliand Pavesi 122423000R06
