About this product

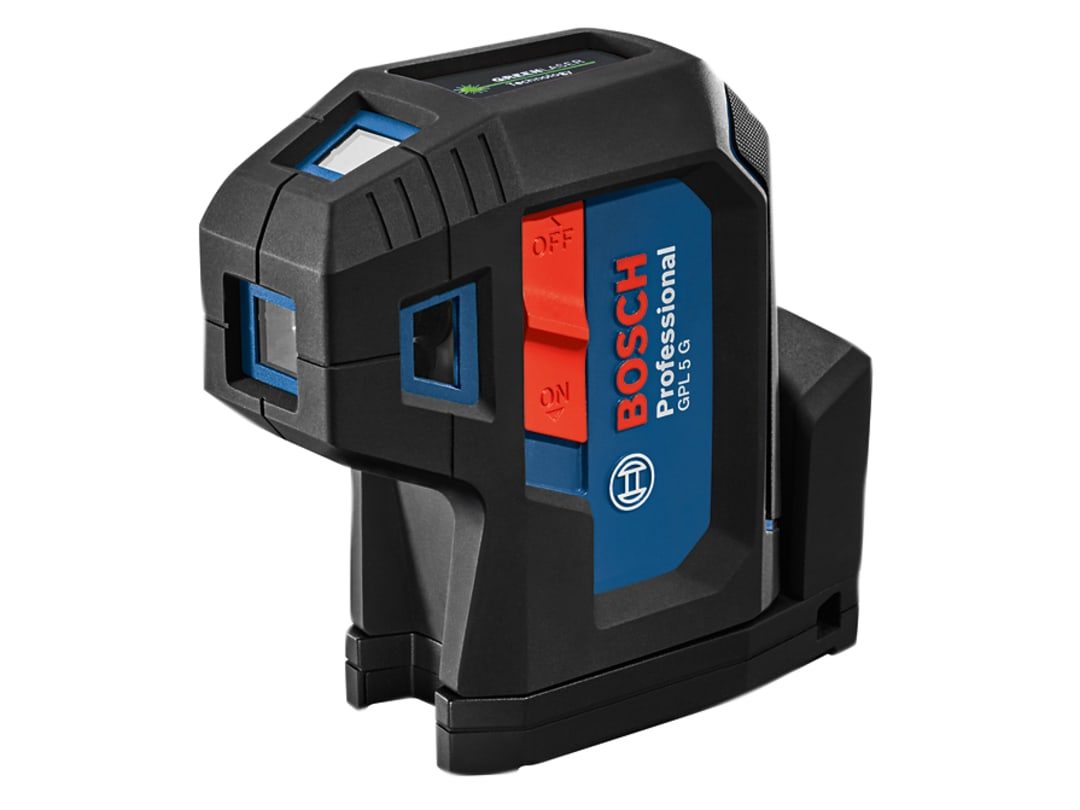

The GPL 5 G is a five-point laser level featuring green laser technology, which provides up to four times better visibility than red points. It incorporates automatic self-levelling when switched on, with a manual lock function to secure the pendulum when turned off. The integrated rotation mount has strong magnets for fast and secure attachment to ferrous surfaces.
The tool combines a rubberised housing with recessed glass to withstand jobsite conditions. It delivers an accuracy of ±0.35 mm/m over a working range of 30 m, with self-levelling across a ±4° range and levelling time of 4 seconds. Rated IP65, it resists dust and water jets. The tripod thread is 1/4 in standard. It operates from −10 to 45 °C and stores safely from −20 to 70 °C, powered by two AA 1.5 V batteries supplied.

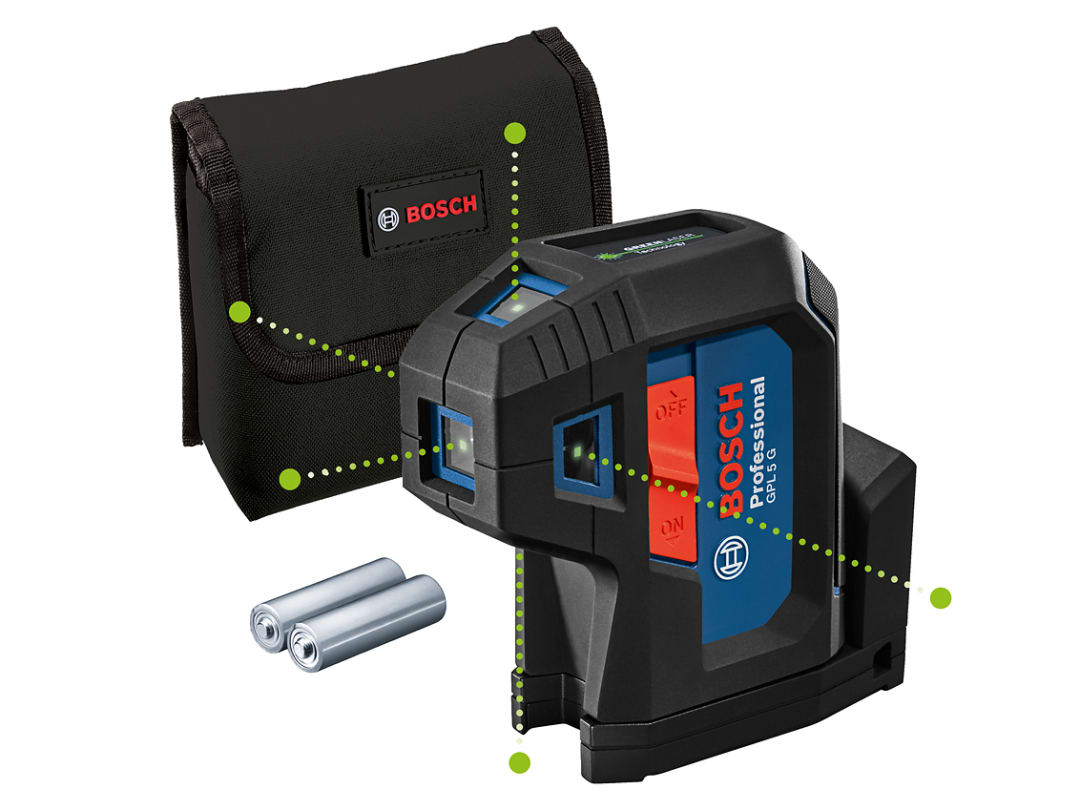

The unit weighs 0.35 kg and measures 141 × 94 × 162 mm. It is supplied with two AA LR6 batteries and a pouch. Laser class 2; shipping restrictions for hazardous goods may apply.
Product details
| Accuracy | ±0.35 mm/m |
|---|---|
| Dimensions | 141 × 94 × 162 mm |
| Dust and Water Protection | IP65 |
| Laser Class | 2 |
| Laser Power | < 1 mW, 500–540 nm |
| Laser Type | Green point laser |
| Levelling Time | 4 seconds |
| Manufacturer Part Number | 0601066P00 |
| Number of Points | 5 |
| Operating Temperature | −10 to 45 °C |
| Power Supply | 2 × AA 1.5 V LR6 batteries |
| Self-Levelling Range | ±4° |
| Storage Temperature | −20 to 70 °C |
| Tripod Thread | 1/4 in |
| Weight | 0.35 kg |
| Working Range | 30 m |
Logistics
| EAN | 4059952524863 |
|---|---|
| Unit of measure | Each |
| Weight | 823 g |
| Dimensions | 141 × 94 × 162 mm |
| Dangerous goods | Yes |
