About this product

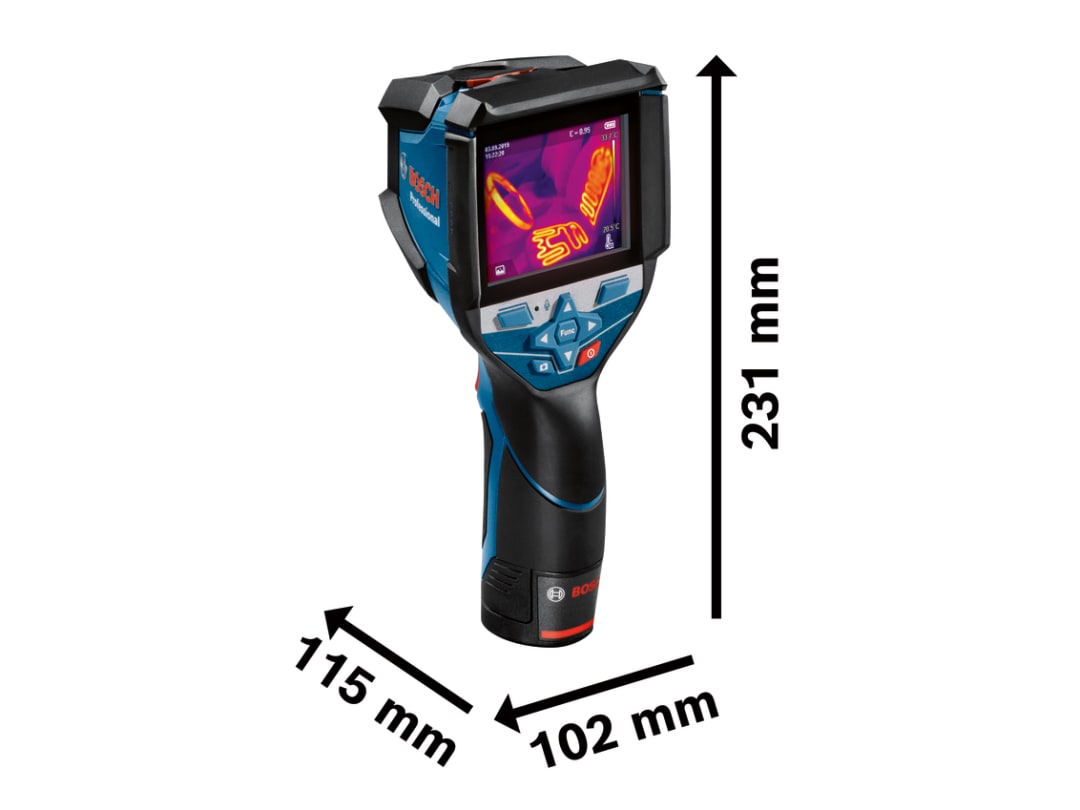

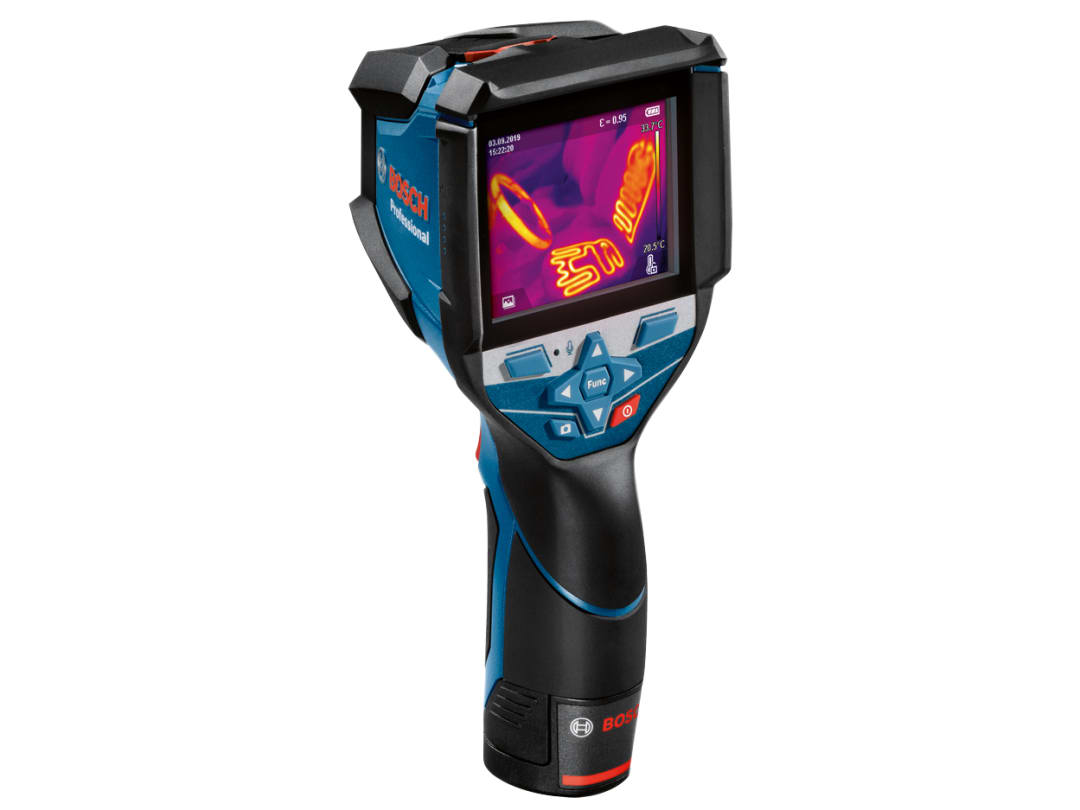

The Bosch GTC 600 C is a professional thermal camera designed for rapid temperature-difference detection across wide ranges. It features a measurement range of -20 to +600 °C with ±2.0 °C accuracy, 0.1 °C resolution, and thermal sensitivity of ≤50 mK. The 256 × 192 px IR sensor captures 49,152 measuring points at 9 Hz refresh rate.

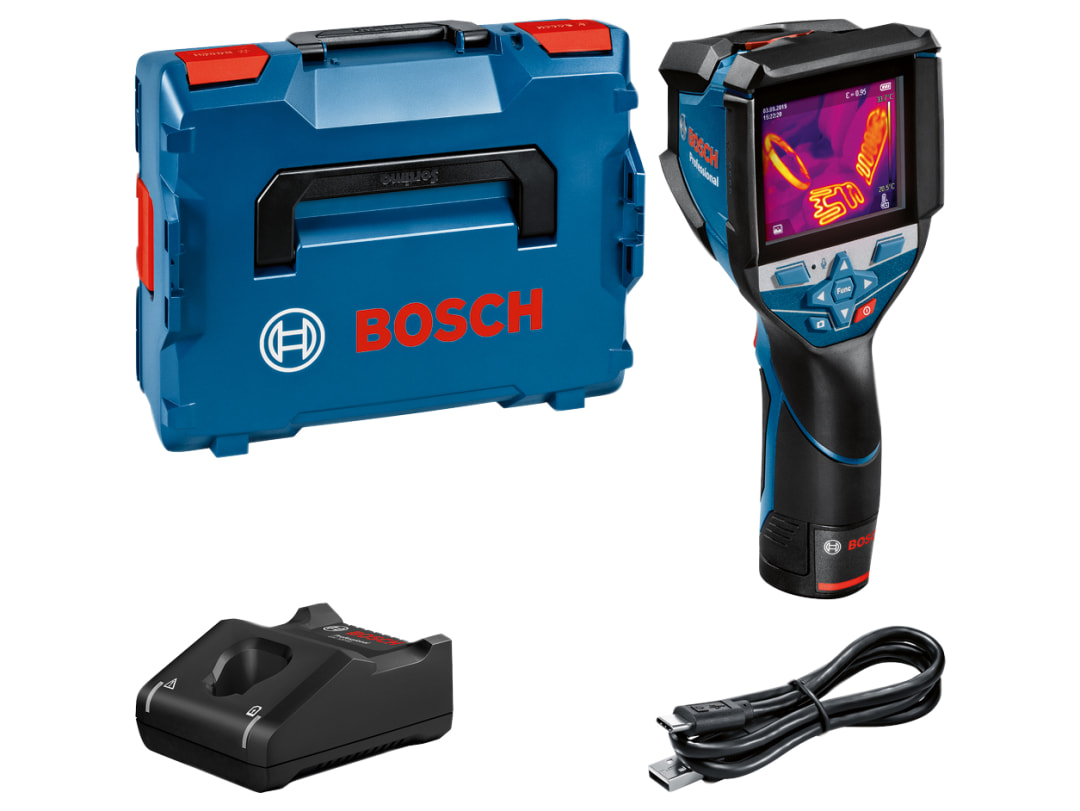

The camera is built for demanding site conditions, with IP54 dust and splash protection and shock resistance to 2 m drops. It includes a 3.5 in display, Wi-Fi and USB-C data transfer, and can store 600 thermal images or 350 images with audio annotation. The tool runs on a 12V 2.0 Ah Li-ion battery and comes with a GAL 12V-40 quick charger, USB-C cable and L-BOXX storage case.
Shipping restrictions may apply due to lithium-ion battery content.
Product details
| Data Transfer | Wi-Fi, USB-C |
|---|---|
| Display Size | 3.5 in |
| Frame Buffer (images) | 600 |
| Frame Buffer (images with audio) | 350 |
| IR Sensor Size | 256 × 192 px |
| Manufacturer Part Number | 0601083570 |
| Measurement Range | -20 °C to +600 °C |
| Measuring Accuracy (IR) | ±2.0 °C |
| Minimum Focus Distance | 0.3 m |
| Number of Measuring Points | 49,152 |
| Protection Class | IP54 |
| Resolution | 0.1 °C |
| Shock Protection | 2 m |
| Thermal Image Refresh Rate | 9 Hz |
| Thermal Sensitivity (NETD) | ≤50 mK |
| Weight | 0.6 kg |
Logistics
| EAN | 4059952515137 |
|---|---|
| Unit of measure | Each |
| Weight | 3850 g |
| Dimensions | 357 × 151 × 443 mm |
| Dangerous goods | Yes |
