£139.90
excl. VAT
£167.88 incl. VAT
£167.88
incl. VAT
£139.90 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Displacement | 19 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | P |
| Flange type norm | German |
| Housing material | Aluminium |
| Max. continous working pressure | 190 BAR |
| Max intermittend working pressure | 200 BAR |
| Max pressure peak | 220 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 1000 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 30 mm |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing material | Nitrile rubber |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | C |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3208 g |
| Dimensions | 150 × 90 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000026537
Bosch Rexroth Gear motor AZMF-11-016LFB20MB 0511625301
£657.11 excl.
£788.53 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

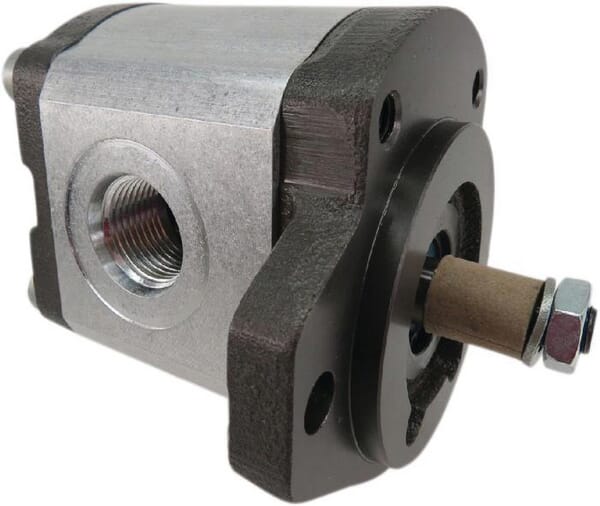

BPA000026437
Bosch Rexroth Gear pump AZPF-11-016LCR12MB 0510625340
£743.65 excl.
£892.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026337
Bosch Rexroth Gear pump AZPFF-10-010/007LHX0303KB-S0210 0510465342
£1,378.08 excl.
£1,653.70 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

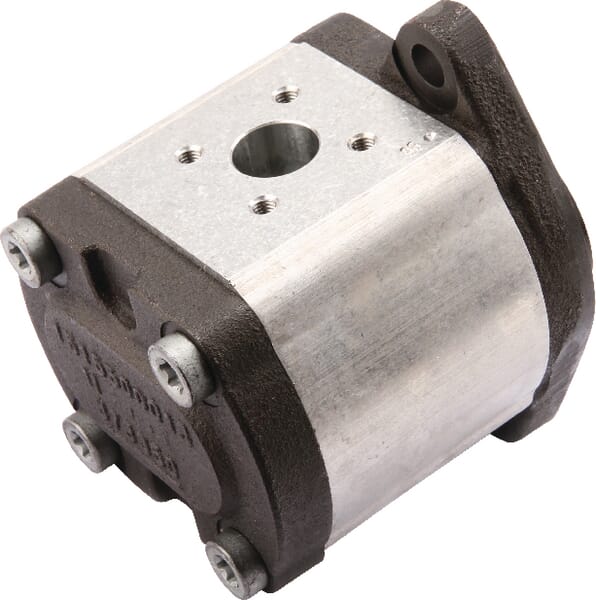

BPA000026439
Bosch Rexroth Gear pump AZPF-11-016LNL20KB 0510625358
£810.47 excl.
£972.56 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026359
Bosch Rexroth Gearpump AZPF-11-014RCB20MB 0510525018
£372.92 excl.
£447.50 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

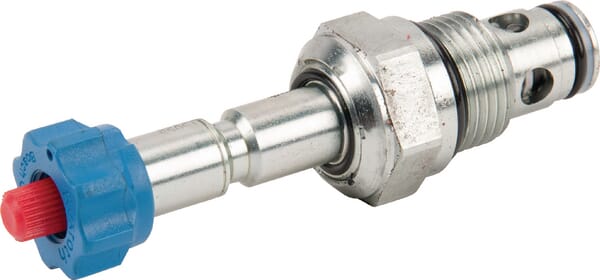

BPA000327285
