£886.99
excl. VAT
£1,064.39 incl. VAT
£1,064.39
incl. VAT
£886.99 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Displacement | 16 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | P |
| Flange type norm | German |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 2000 r/min |
| Min rotation speed | 1000 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Original number equivalent | 01174516, 01174517, 01174513, G144940012010, G238401100012, 1174517, 1262597, G238401100012, 0510610323, 1174513, G281940010010, 1175656, 0510615329, G278941100010, 1175997 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | C |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3125 g |
| Dimensions | 145 × 100 × 85 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000210440

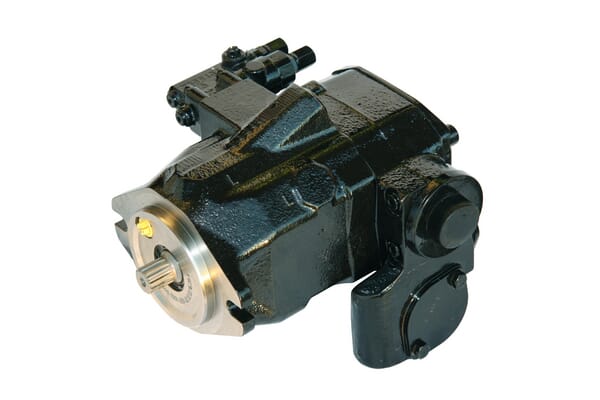

Bosch Rexroth Piston pump CNH 132575300 A10CO45DFR152R6
