£344.92
excl. VAT
£413.90 incl. VAT
£413.90
incl. VAT
£344.92 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Can be used in adverse conditions, Low space requirement |
| Details | Outer housing on bearings, Compact design |
| Displacement | 16 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | O |
| Flange type norm | European |
| Housing material | Aluminium |
| Long description | Application:, Mobile applications, Industrial applications, Benefits:, Can be used in adverse conditions, Low space requirement, Details:, Outer housing on bearings, Compact design, Properties:, Possible to combine multiple pumps, Customer-specific design possible |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 2000 r/min |
| Min rotation speed | 1000 r/min |

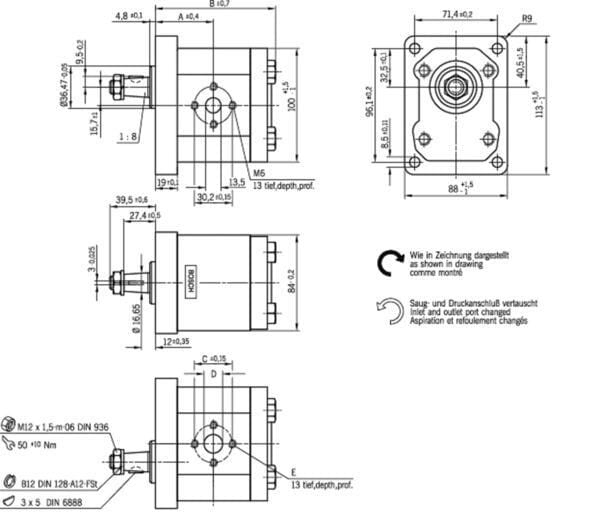

| Mounting diameter | 36.47 mm |
| Mounting holes horizontal distance | 71.4 mm |
| Mounting holes vertical distance | 96.1 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 30.2 mm |
| Properties | Possible to combine multiple pumps, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 16.65 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | H |
| Suction port bolts circle diameter | 39.7 mm |
| Suitable for machine/vehicle brand | Mc Cormick |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3556 g |
| Dimensions | 151 × 113 × 87 mm |
| Dangerous goods | No |
