£479.73
excl. VAT
£575.67 incl. VAT
£575.67
incl. VAT
£479.73 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 22.5 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | O |
| Flange type norm | European |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 230 BAR |
| Max pressure peak | 210 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 600 r/min |
| Mounting diameter | 36.47 mm |
| Mounting holes horizontal distance | 71.4 mm |
| Mounting holes vertical distance | 96.1 mm |
| Number of mounting holes | 4 |
| Original number equivalent | R918C02409, 5180177 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Pressure port thread diameter | M18 |
| Pressure port thread pitch | 1.50 mm |
| Pressure port thread type | Metric |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing material | Viton |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 16.65 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | H |
| Suction port bolts circle diameter | 40 mm |
| Suitable for machine/vehicle brand | Claas, New Holland |
| Unit | Each |
| Weight | 4.7 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5233 g |
| Dimensions | 180 × 130 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000050470
Bosch Rexroth Flange 1.515.702.072 1515702072
£74.72 excl.
£89.66 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000026536
Bosch Rexroth Gear motor AZMF-11-019RFB20MB 0511625002
£557.26 excl.
£668.71 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

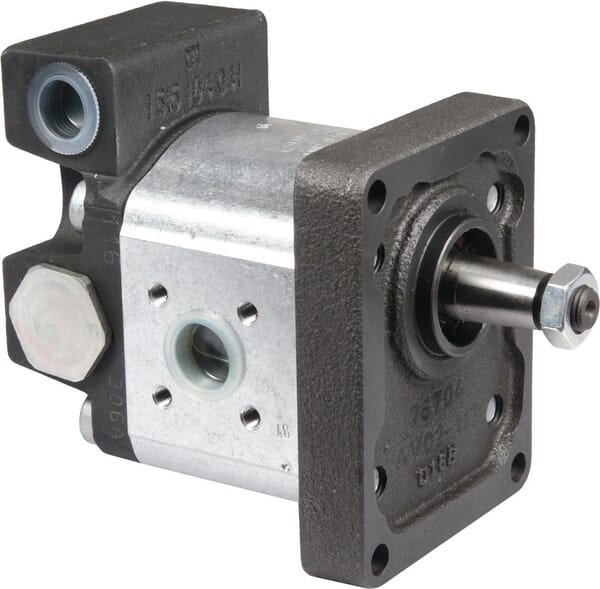

BPA000208910
Bosch Rexroth Oil pump with valve 98307212N
£947.83 excl.
£1,137.40 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

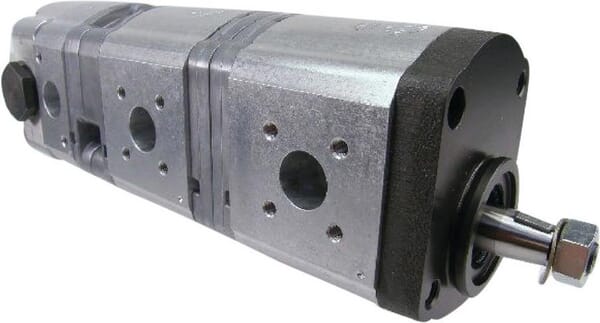

BPA000026475
Bosch Rexroth Gear pump AZPFFF-11-016/014/008LCP2020XXKD020XX-Sand 0510665465
£1,079.28 excl.
£1,295.14 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026426
Bosch Rexroth Gear pump AZPF-11-019RHO30PB-S0285 0510625063
£325.29 excl.
£390.35 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

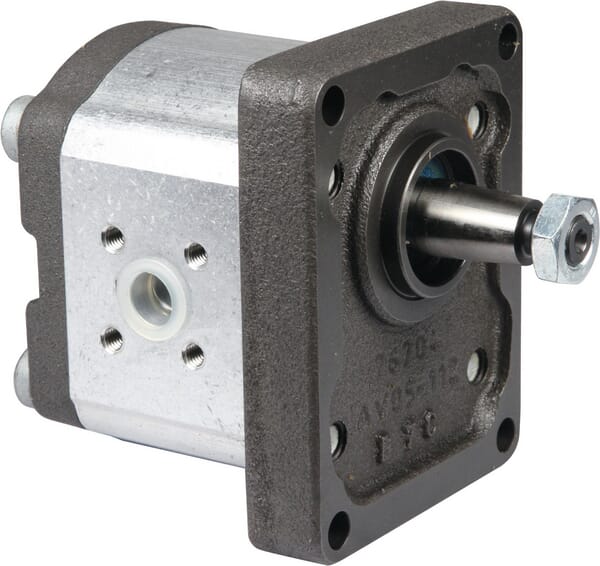

BPA000026645
