£269.54
excl. VAT
£323.45 incl. VAT
£323.45
incl. VAT
£269.54 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Displacement | 8 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | N |
| Flange type norm | German |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 700 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Original number equivalent | R918C00329, 3145248R93, G231941010010, AL37753, 1986963C1, 0510415301, AL10681, 0510415303, AL16301, 0510415306 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing material | Fluo rubber [FPM] |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | C |
| Suction port bolts circle diameter | 40 mm |
| Suitable for machine/vehicle brand | Claas, New Holland, John Deere |
| Unit | Each |
| Weight | 2.85 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2886 g |
| Dimensions | 136 × 110 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327291

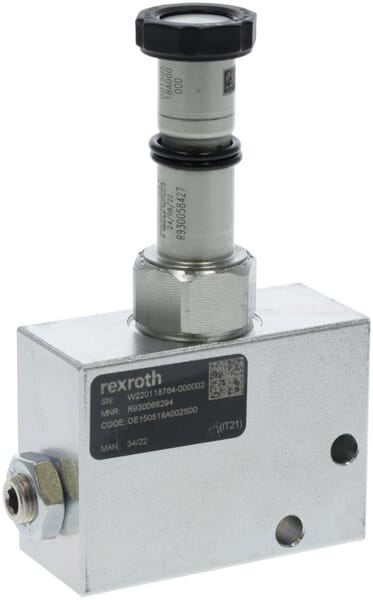

Bosch Rexroth Valve 2/2 way VEI-CE-16-08A OE1505183A02S1
